FlexRIC Documentation¶

This repository contains O-RAN Alliance compliant E2 Node Agent emulators, a nearRT-RIC, and xApps written in C/C++ and Python.

It implements various service models (O-RAN standard E2SM-KPM v2.01/v2.03/v3.00 and E2SM-RC v1.03, as well as customized NG/GTP, PDCP, RLC, MAC, SC and TC).

Depending on the service model, different encoding schemes have been developed (ASN.1, flatbuffer, plain).

The indication data received in the xApp uses as persistence mechanism an sqlite3 database for enabling offline processing applications (e.g., ML/AI). Moreover it supports E2AP v1.01/v2.03/v3.01 for all the SMs.

If you want to know more about FlexRIC and its original architecture, you can find more details at:

Robert Schmidt, Mikel Irazabal, and Navid Nikaein. 2021. FlexRIC: an SDK for next-generation SD-RANs. In Proceedings of the 17th International Conference on emerging Networking EXperiments and Technologies (CoNEXT ‘21). Association for Computing Machinery, New York, NY, USA, 411–425. DOI. A PDF copy is available here.

Below is the list of features available in this version divided per component and per service model:

	OAI-5g	SRS-5g	E2 agent emulators	nearRT-RIC	xApp C/C++ SDK	xApp Python SDK	O-RAN standardized
E2SM-KPM	Y	Y	Y	Y	Y	N	Y
E2SM-RC	Y	Y	Y	Y	Y	N	Y
MAC	Y	N	Y	Y	Y	Y	N
RLC	Y	N	Y	Y	Y	Y	N
PDCP	Y	N	Y	Y	Y	Y	N
GTP	Y	N	Y	Y	Y	Y	N
SLICE	N	N	Y	Y	Y	Y	N
TC	N	N	Y	Y	Y	N	N

1. Installation¶

1.1 Prerequisites¶

1.1.1 GCC compiler¶

Please make sure you have gcc-13 installed (gcc-10 and 12 are compatible as well). Follow the next steps:

sudo apt update -y
sudo apt upgrade -y
sudo apt install -y build-essential
sudo apt install -y gcc-13 g++-13 cpp-13
sudo update-alternatives --install /usr/bin/gcc gcc /usr/bin/gcc-13 100 --slave /usr/bin/g++ g++ /usr/bin/g++-13 --slave /usr/bin/gcov gcov /usr/bin/gcov-13
sudo update-alternatives --config gcc # chose gcc-13

Note: gcc-11 is not supported in FlexRIC

1.1.2 (opt.) Wireshark¶

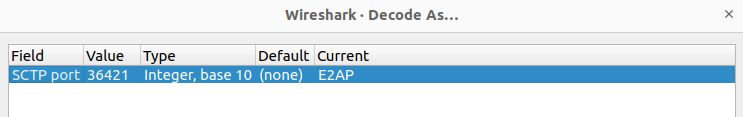

Per O-RAN.WG3.E2GAP-v02.00 specifications, no SCTP port is specified for E2AP protocol. In our implementation, we use port number 36421. Please, add the following configuration in Wireshark:

E2AP configuration

1.1.3 (opt.) Flatbuffer encoding¶

We also provide a flatbuffers encoding/decoding scheme as alternative to ASN.1. In case that you want to use it follow the instructions at FlatBuffers Compiler and Library in C and provide the path for the lib and include when selecting it at ccmake .. from the build directory

1.2 Download the required dependencies¶

1.2.1 Mandatory dependencies¶

sudo apt install libsctp-dev cmake-curses-gui libpcre2-dev

1.2.2 (opt.) Multi-language xApp requirements¶

SWIG (at least v.4.1). We use SWIG as an interface generator to enable the multi-language feature (i.e., C/C++ and Python) for the xApps. Please, check your SWIG version (i.e, swig-version) and install it from scratch if necessary as described here: SWIG or via the code below:
```
git clone https://github.com/swig/swig.git
cd swig
git checkout release-4.1
./autogen.sh
./configure --prefix=/usr/
make -j8
sudo make install
```
Python dependency
```
sudo apt-get install python3.10-dev
```

2. FlexRIC installation¶

2.1 Clone the FlexRIC repository¶

git clone https://gitlab.eurecom.fr/mosaic5g/flexric
cd flexric/

2.2 Build FlexRIC¶

mkdir build && cd build && cmake .. && make -j8

If you have installed optional libraries from section 1.2.2 (opt.) Multi-language xApp requirements, run the following command:

mkdir build && cd build && cmake -DXAPP_MULTILANGUAGE=ON .. && make -j8

Currently available versions:

	E2SM-KPM v2.01	E2SM-KPM v2.03	E2SM-KPM v3.00
E2AP v1.01	Y	Y	Y
E2AP v2.03	Y	Y (default)	Y
E2AP v3.01	Y	Y	Y

If you wish to modify the default versions, please, execute this command:

mkdir build && cd build && cmake -DE2AP_VERSION=E2AP_VX -DKPM_VERSION=KPM_VY .. && make -j8

where X=1,2,3, and Y=2_01,2_03,3_00.

If you want to profile FlexRIC, or just need a fast nearRT-RIC, you should build FlexRIC in release mode to enable compiler optimizations:

mkdir build && cd build && cmake -DCMAKE_BUILD_TYPE=Release .. && make -j8

2.3 Installation of Service Models (SMs)¶

The service models are shared by xApps and the RAN. Therefore, they have to be installed in a place where the RAN can access them. The easiest is to install them globally, by typing:

sudo make install

By default installation path is /usr/local/. Therefore service model libraries in /usr/local/lib/flexric while the configuration file in /usr/local/etc/flexric. If you would like to change the default installation path, please compile as following:

mkdir build && cd build && cmake -DCMAKE_INSTALL_PREFIX=<new-path> .. && make -j8

Note: Command sudo make install installs shared libraries that represent Service Models. Each time E2AP and/or E2SM-KPM versions are modified, the command must be executed again.

Check that everything went fine by running unit tests:

ctest -j8 --output-on-failure

3. Service Models¶

3.1 O-RAN¶

For a deeper understanding, we recommend that users of FlexRIC familiarize themselves with O-RAN WG3 specifications available at the O-RAN specifications page.

The following specifications are recommended: - O-RAN.WG3.E2GAP-v02.00 - nearRT-RIC architecture & E2 General Aspects and Principles: important for a general understanding for E2 - O-RAN.WG3.E2AP-version - E2AP protocol description - O-RAN.WG3.E2SM-KPM-version - E2SM-KPM Service Model description - O-RAN.WG3.E2SM-RC-v01.03 - E2SM-RC Service Model description

3.1.1 E2SM-KPM¶

As mentioned in section 2.2 Build FlexRIC, we support E2SM-KPM v2.01/v2.03/v3.00 which all use ASN.1 encoding.

3.1.2 E2SM-RC¶

We support E2SM-RC v1.03 which uses ASN.1 encoding.

3.2 Custom Service Models¶

In addition, we support custom service models, such are MAC, RLC, PDCP, GTP, SLICE and TC (traffic control). All use plain encoding, i.e., no ASN.1, but write the binary data into network messages. However, please be aware that not all of them are supported with OAI RAN, and written in C/Python languages. For more information, please refer to the table in FlexRIC Documentation.

4. Deployment¶

4.1 Bare-metal testbed¶

Optionally run Wireshark and capture E2AP traffic.

Start the nearRT-RIC Please make sure to set the desired nearRT-RIC IP address NEAR_RIC_IP in /usr/local/etc/flexric/flexric.conf, or feel free to overwrite it with option -a.
```
./build/examples/ric/nearRT-RIC
```

In addition, if FlexRIC is installed in the custom <new-path> path, please specify the configuration file and service model paths as follows:

./build/examples/ric/nearRT-RIC -c <new-path>/etc/flexric/flexric.conf -p <new-path>/lib/flexric/

Same applies to E2 agent emulators.

Start E2 agent emulators

gNB-mono

./build/examples/emulator/agent/emu_agent_gnb

if CU/DU split is used, start the gNB as follows

./build/examples/emulator/agent/emu_agent_gnb_cu
./build/examples/emulator/agent/emu_agent_gnb_du

eNB

./build/examples/emulator/agent/emu_agent_enb

Check that you see the E2 Setup Request and Response messages in Wireshark. Within E2 Setup Request message, E2 node sends the list of supported service models (its “capabilities”), such are E2SM-KPM and E2SM-RC supported RAN Functions.

As this section is dedicated for testing with E2 agent emulators, all RIC INDICATION messages contain random data, as there is no UE connected.

XAPP_DURATION environment variable overwrites the default xApp duration of 20s. If the negative value used, the xApp duration is considered to be infinite.

At runtime, the xApp loads its default configuration from /usr/local/etc/flexric/flexric.conf. To override specific default values, you can use the following command-line options: * -a: overrides the NEAR_RIC_IP * -d: overrides the DB_DIR * -n: overrides the DB_NAME

Start different C xApps

start the E2SM-KPM monitor xApp - fetch UE-level measurements based on S-NSSAI (1, 0xffffff) condition; O-RAN.WG3.E2SM-KPM-version section 7.4.5 - REPORT Service Style 4 (“Common condition-based, UE-level”)

XAPP_DURATION=20 ./build/examples/xApp/c/monitor/xapp_kpm_moni -d /db_dir/ -n xapp_db # not supported by emu_agent_enb; values for options `-d` and `-n` represent an example for shared volume with Grafana

start the E2SM-RC monitor xApp - based on ORAN.WG3.E2SM-RC-v01.03 specification, aperiodic subscriptions to:
- REPORT Service Style 1 (“Message Copy”) - section 7.4.2
- RRC Message (RRC Reconfiguration, Measurement Report, Security Mode Complete, RRC Setup Complete)
- UE ID (when RRC Setup Complete and/or F1 UE Context Setup Request detected)
- REPORT Service Style 4 (“UE Information”) - section 7.4.5
- UE RRC State Change (RRC connected, RRC inactive, RRC idle)
```
XAPP_DURATION=20 ./build/examples/xApp/c/monitor/xapp_rc_moni # not supported by eNB as per spec
```
start the E2SM-RC control xApp - RAN control function “QoS flow mapping configuration” (e.g. creating a new DRB); ORAN.WG3.E2SM-RC-v01.03 section 7.6.2 - CONTROL Service Style 1 (“Radio Bearer Control”)
```
XAPP_DURATION=20 ./build/examples/xApp/c/kpm_rc/xapp_kpm_rc # not supported by emu_agent_enb
```

start the (MAC + RLC + PDCP + GTP) monitor xApp

XAPP_DURATION=20 ./build/examples/xApp/c/monitor/xapp_gtp_mac_rlc_pdcp_moni

start the MAC control xApp

./build/examples/xApp/c/ctrl/xapp_mac_ctrl # not supported by emu_agent_enb and emu_agent_gnb_cu

start the slicing xApp

./build/examples/xApp/c/slice/xapp_slice_moni_ctrl

start the TC xApps

./build/examples/xApp/c/tc/xapp_tc_all
./build/examples/xApp/c/tc/xapp_tc_codel
./build/examples/xApp/c/tc/xapp_tc_ecn
./build/examples/xApp/c/tc/xapp_tc_osi_codel
./build/examples/xApp/c/tc/xapp_tc_partition 36422 # second argument must be the xApp port

if XAPP_MULTILANGUAGE option is enabled, start the python xApps:

# (MAC + RLC + PDCP + GTP) monitor xApp
XAPP_DURATION=20 python3 build/examples/xApp/python3/xapp_mac_rlc_pdcp_gtp_moni.py
# slicing xApp
python3 build/examples/xApp/python3/xapp_slice_moni_ctrl.py
cd build/examples/xApp/python3 && ./watch_slice_stats # to observe real-time stats for network slices

Multiple xApps can be run in parallel.

At this point, FlexRIC is working correctly in your computer and you have already tested the multi-agent, multi-xApp and multi-language capabilities.

The latency that you observe in your monitor xApp is the latency from the E2 Agent to the nearRT-RIC and xApp. In modern computers the latency should be less than 200 microseconds or 50x faster than the O-RAN specified minimum nearRT-RIC latency i.e., (10 ms - 1 sec) range. Therefore, FlexRIC is well suited for use cases with ultra low-latency requirements.

Additionally, all the data received in the xApp is also written to DB_DIR/DB_NAME or /tmp/xapp_db_<random-numbers> (if DB_DIR=/tmp/) in case that offline data processing is wanted (e.g., Machine Learning/Artificial Intelligence applications). You browse the data using e.g., sqlitebrowser.

4.1.1 Grafana¶

The official Grafana installation instructions.

At the moment, we support real time monitoring for E2SM-KPM Service Model in Grafana. After the Grafana installation, please follow the additional steps:

sudo grafana-cli plugins install frser-sqlite-datasource
sudo vi /etc/grafana/grafana.ini # set the min_refresh_interval to 1s
sudo systemctl start grafana-server
DB_DIR=/db_dir/ && sudo mkdir $DB_DIR && sudo chown -R "$USER":"$USER" $DB_DIR

Import the Grafana configuration: - Open Grafana in your web browser http://localhost:3000 - In Connections > Data Sources, click Add new data source and choose SQLite; set the path to DB_DIR/DB_NAME; save and test the connection - In Dashboards > New > Import upload the grafana/dashboards/grafana-dashboard.json file; select the SQLite data source you created

4.2 (opt.) Docker testbed¶

FlexRIC is supported on the following distributions: Ubuntu, Red Hat, and Rocky Linux. You can build the images as:

# Ubuntu
docker buildx build --no-cache --target oai-flexric --tag oai-flexric:dev --file docker/Dockerfile.flexric.ubuntu .
# Red Hat
docker buildx build --no-cache --target oai-flexric --tag oai-flexric:dev --file docker/Dockerfile.flexric.rhel .
# Rocky Linux
docker buildx build --no-cache --target oai-flexric --tag oai-flexric:dev --file docker/Dockerfile.flexric.rocky .

In order to reproduce the bare-metal testbed in docker environment, follow the next steps:

cd docker
docker compose up -d

4.2.1 Grafana¶

The Grafana application is implemented in the docker container. In order to visualize real time E2SM-KPM data, open Grafana in your web browser http://localhost:3000.

5. Integration with RAN and example of deployment¶

5.1 Integration with OpenAirInterface 5G RAN¶

Follow the instructions here.

5.2 Integration with srsRAN 5G RAN¶

Follow the instructions here.

5.3 Integration with Keysight RICtest¶

The OAI nearRT-RIC with the xApp flexric/examples/xApp/c/keysight/xapp_keysight_kpm_rc.c were successfully tested with Keysight’s RICtest RAN emulator, as demonstrated at O-RAN PlugFest Fall 2023.

Please find more information at the following links (available only to the O-RAN Alliance members): * recorded PlugFest session. FlexRIC is shown after 3 hours 33 minutes (3:33:00). * accompanying presentation; the mentioned xApp is shown starting at slide 190.

5.4 Integration with ns-O-RAN simulator¶

Developed by WIoT at Northeastern University, ns-O-RAN is the first open source simulation platform that combines a functional 4G/5G protocol stack in ns-3 with an O-RAN-compliant E2 interface.

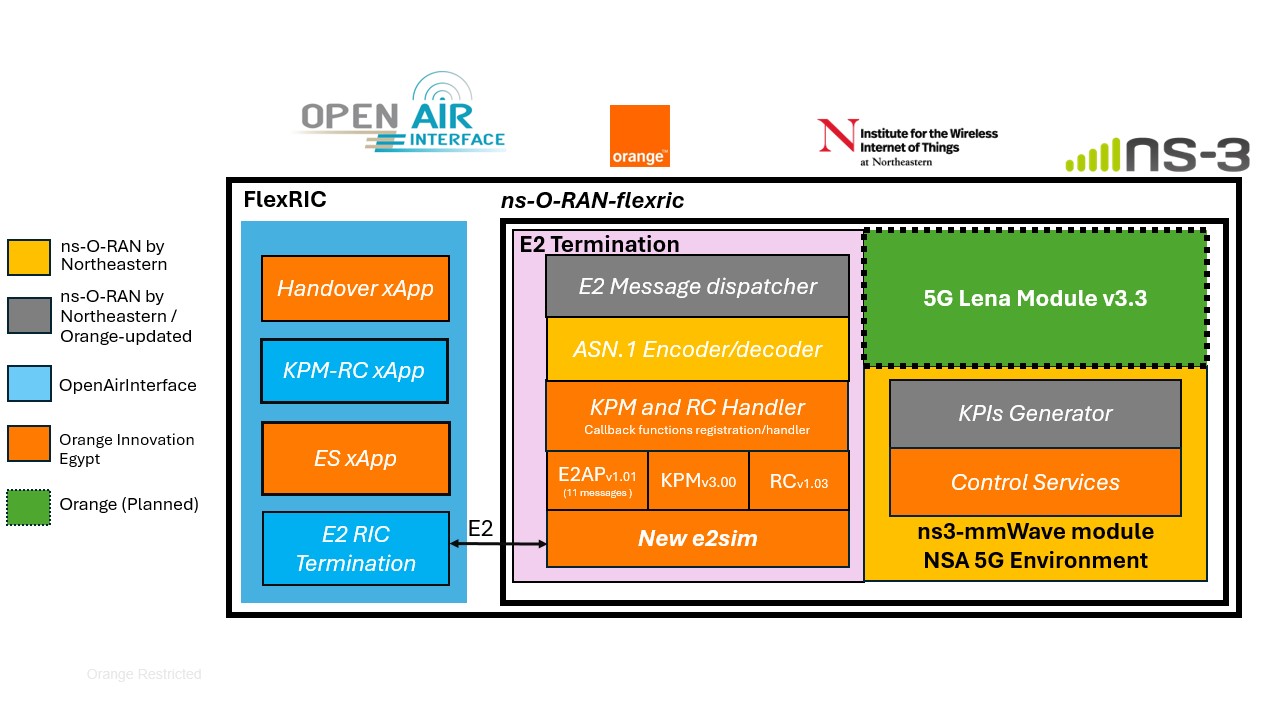

Recognizing the critical role of the ns-O-RAN simulator, the Orange Innovation Egypt team successfully integrated the OAI nearRT-RIC with this simulator, resulting in the creation of a new xApp testing framework named ns-O-RAN-flexric. A summary of the enhancements made to each repository is illustrated in the diagram below:

alt text

The simulator has been updated and enhanced to support E2AP v1.01, KPM v3.00, and RC v1.03. This framework has been tested with the kpm-rc and Eenergy Saving under Cell utilization xApps.

5.4.1 Zero-touch operation: Energy Saving (ES) under Cell utilization xApp Overview¶

The Orange Innovation Egypt team has developed an Energy Saving (ES) under cell utilization xApp. This xApp continuously monitors the Physical Resource Block (PRB) utilization of each cell to make informed decisions about network resource management while ensuring Quality of Service (QoS) for the scenario.

Testbed tutorial
Testbed demo - the demo walks you through the process from monitoring PRB usage to initiating handovers and deactivating underutilized cells, and ensuring QoS observability throughout the scenario.

5.5 (opt.) Synchronize clock¶

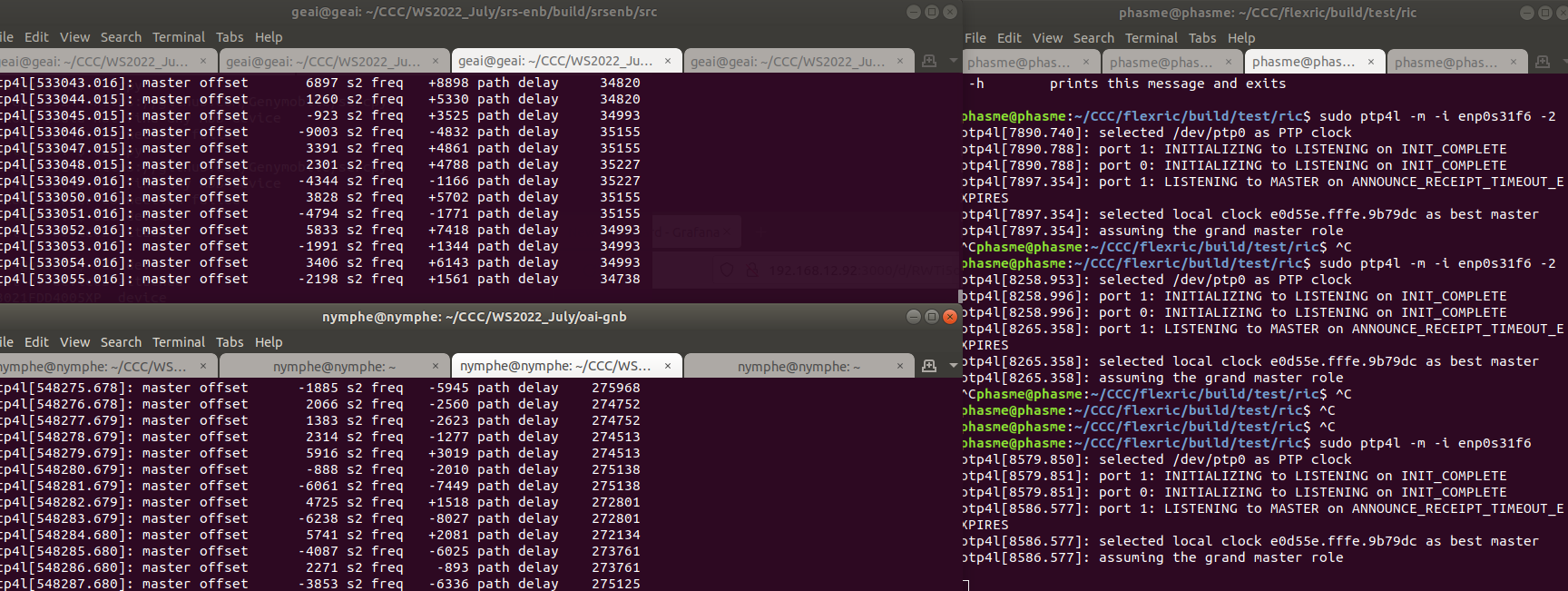

Before running the various components (RAN/nearRT-RIC/xApps), you probably want to align the machines’ clock. For this aim, you can use ptp4l in all the machines involved (if you have for example deployed the various components on different hosts)

sudo ptp4l -m -i InterfaceName #for master
sudo ptp4l -m -i InterfaceName -s #for slaves

alt text

Following make sure that no ntpd, chrondy or timesyncd is running in the system (e.g., sudo systemctl stop systemd-timesyncd).

sudo phc2sys -m -s InterfaceName -w

alt text

6. Integration with other nearRT-RICs¶

6.1 O-RAN SC nearRT-RIC¶

We showcased the successful integration between OAI E2 agent and O-RAN SC nearRT-RIC in the OAI E2AP tutorial.

Note that the OSC nearRT-RIC can also be tested with FlexRIC E2 agent emulators (build/examples/emulator/agent/). Before proceeding with integration, please set the e2ap_server_port to 36422 (the default is 36421), as the E2AP port for OSC nearRT-RIC is 36422.

7. Support/further resources¶

Mailing list: if you need help or have some questions, you can subscribe to the mailing list techs@mosaic-5g.io that you can find at Gitlab. The emails are archived and available publicly.
The Wiki space contains tutorials and presentations
Original FlexRIC paper ACM CoNEXT 2021

7.1 Demo - Summer Workshop 2022¶

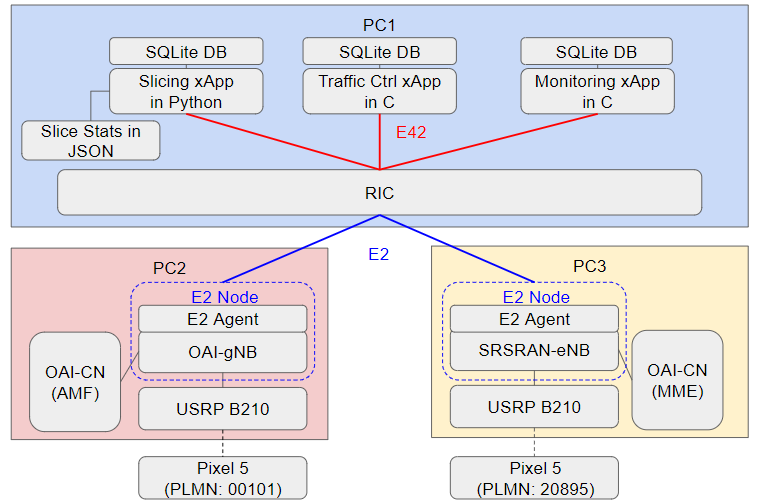

If you want to see the full power of FlexRIC using its multi-RAT, multi-vendor, multi-language, multi-agent and multi-xApp capabilities in action, you can replicate the following demo:

FlexRIC - Enable 4G & 5G slices via Slice Service Model - OpenAirInterface Summer Workshop 2022 July

FlexRIC

8. OAM Project Group & Roadmap¶

Check on OpenAirInterface Website.

9. FlexRIC Milestone¶

Check on FlexRIC Milestones and OpenAirInterface Website.
