OpenAirInterface 5G OAM Summer Workshop 2024

OpenAirInterface License

It is distributed under OAI Public License V1.1.

The license information is distributed under LICENSE file in the same directory.

Please see NOTICE file for third party software that is included in the sources.

Overview

This tutorial describes the steps of deployment 5G OAI RAN, with integrated E2 agent and a nearRT-RIC using O-RAN compliant FlexRIC.

1. Installation

1.1 Install prerequisites

1.1.1 GCC compiler

FlexRIC triggers a compiler bug in gcc-11 and is therefore not supported. Please make sure you have gcc-12 installed (gcc-10 and gcc-13 should also work but we recommend gcc-12).

Follow the next steps:

sudo apt update -y
sudo apt upgrade -y
sudo apt install -y build-essential
sudo apt install -y gcc-12 g++-12 cpp-12
sudo update-alternatives --install /usr/bin/gcc gcc /usr/bin/gcc-12 100 --slave /usr/bin/g++ g++ /usr/bin/g++-12 --slave /usr/bin/gcov gcov /usr/bin/gcov-12
sudo update-alternatives --config gcc # chose gcc-12

1.1.2 CMake (at least v3.15).

On Ubuntu, you should use this PPA to install an up-to-date version.

1.1.3 Flatbuffer encoding (optional, advanced)

FlexRIC has experimental support for an alternative encoding/decoding scheme using Flatbuffers. Refer to the FlexRIC README in case you are interested to try it.

1.2 Download the required dependencies

1.2.1 Mandatory dependencies

sudo apt install libsctp-dev cmake-curses-gui libpcre2-dev

1.2.2 Multi-language xApp requirements (optional)

  • SWIG (at least v.4.1). We use SWIG as an interface generator to enable the multi-language feature (i.e., C/C++ and Python) for the xApps. Please, check your SWIG version (i.e, swig -version) and install it from scratch if necessary as described here or via the code below:

    git clone https://github.com/swig/swig.git
cd swig
git checkout release-4.1
./autogen.sh
./configure --prefix=/usr/
make -j8
make install

  • Python dependencies

    sudo apt install python3.8 python-dev

2. Deployment

2.1 OAI RAN

2.1.1 Clone the OAI repository

We use the same version of OAI as the RAN tutorial, i.e., tag 2024.w26.

git clone https://gitlab.eurecom.fr/oai/openairinterface5g oai
cd oai/
git checkout 2024.w26

Note: You can of course do that in an existing repository.

2.1.2 Build OAI with E2 Agent

Currently available versions:

KPM v2.03 KPM v3.00
E2AP v1.01 Y Y
E2AP v2.03 Y Y
E2AP v3.01 Y Y

Please note that KPM SM v2.01 is supported only in FlexRIC, but not in OAI.

By default, OAI will build the E2 Agent with E2AP v2 and KPM v2.

If you want a different version, by passing --cmake-opt -DE2AP_VERSION=E2AP_VX with X=1,2,3, and --cmake-opt -DKPM_VERSION=KPM_VX with X=2_03,3_00.

cd cmake_targets/
./build_oai -I # only first time install for OAI
./build_oai -c --gNB --nrUE --build-e2 --ninja
  • -I option is to install pre-requisites, you only need it the first time you build the softmodem or when some oai dependencies have changed.
  • --gNB is to build the nr-softmodem and nr-cuup executables and all required shared libraries
  • --nrUE is to build the nr-uesoftmodem executable and all required shared libraries
  • --ninja is to use the ninja build tool, which speeds up compilation
  • --build-e2 option is to use the E2 agent, integrated within RAN.

If the openair2/E2AP/flexric folder is empty, try manually the following commands:

git submodule init
git submodule update

2.2 FlexRIC

By default, FlexRIC will build the nearRT-RIC with E2AP v2 and KPM v2. If you want a different version, edit the cmake variable E2AP_VERSION and KPM_VERSION during cmake invocation as shown below.

Note that OAI’s and FlexRIC’s E2AP_VERSION and KPM_VERSION need to match to avoid incompatibilities among versions.

2.2.1 Clone the FlexRIC repository

git clone https://gitlab.eurecom.fr/mosaic5g/flexric flexric
cd flexric/
git checkout beabdd072ca9e381d4d27c9fbc6bb19382817489

Note Instead of manually cloning this in a separate directory, you can of course simply use the git submodule directory in the RAN, skip the clone, and proceed with the next section.

2.2.2 Build FlexRIC

If you have installed optional libraries from section 1.2.2 Multi-language xApp requirements (optional), run this command:

mkdir build && cd build && cmake .. && make -j8

You can pass a number of variables to cmake:

  • -DXAPP_MULTILANGUAGE=OFF to disable the usage of SWIG (meaning, that only xApps written in C will be supported).
  • -DE2AP_VERSION=E2AP_VX with X=1,2,3 to select the E2AP version.
  • -DKPM_VERSION=KPM_VX with X=2_01,2_03,3_00 to select the KPM version.

2.2.3 Installation of Service Models (SMs)

You need to install the SMs to use them in FlexRIC (important!):

sudo make install

By default the service model libraries will be installed in the path /usr/local/lib/flexric while the configuration file is in /usr/local/etc/flexric.

3. Service Models available in OAI RAN

3.1 O-RAN

For a deeper understanding, we recommend that users of FlexRIC familiarize themselves with O-RAN WG3 specifications available at the O-RAN specifications page.

The following specifications are recommended:

  • O-RAN.WG3.E2GAP-v02.00 - nearRT-RIC architecture & E2 General Aspects and Principles
  • O-RAN.WG3.E2AP-v02.03 - E2AP protocol description
  • O-RAN.WG3.E2SM-KPM-v02.03 - KPM Service Model description
  • O-RAN.WG3.E2SM-RC-v01.03 - RAN Control Service Model description

3.1.1 E2SM-KPM

As mentioned in section 2.1.2 Build OAI with E2 Agent, we support KPM v2.03/v3.00. Both use ASN.1 encoding.

Per O-RAN specifications, 5G measurements supported by KPM are specified in 3GPP TS 28.552.

From 3GPP TS 28.552, at the moment, we support the following list:

  • DRB.PdcpSduVolumeDL
  • DRB.PdcpSduVolumeUL
  • DRB.RlcSduDelayDl
  • DRB.UEThpDl
  • DRB.UEThpUl
  • RRU.PrbTotDl
  • RRU.PrbTotUl

From O-RAN.WG3.E2SM-KPM-version specification, we implemented:

  • REPORT Service Style 4 (“Common condition-based, UE-level” - section 7.4.5) - fetch above measurements per each UE that matches common criteria (e.g. S-NSSAI).

3.1.2 E2SM-RC

We support RC v1.03. It uses ASN.1 encoding.

From ORAN.WG3.E2SM-RC-v01.03 specification, we implemented:

  • REPORT Service Style 4 (“UE Information” - section 7.4.5) - aperiodic subscription for “UE RRC State Change”
  • CONTROL Service Style 1 (“Radio Bearer Control” - section 7.6.2) - “QoS flow mapping configuration” (e.g creating a new DRB)

3.2 Custom Service Models

In addition, we support custom Service Models, such as MAC, RLC, PDCP, and GTP. All use plain encoding, i.e., no ASN.1, but write the binary data into network messages. If you are interested in those, please follow the instructions in the FlexRIC README.

4. Start the process

4.1 Test with emulators

  • Start the nearRT-RIC

    ./build/examples/ric/nearRT-RIC

  • Start E2 Node agents

    • gNB-mono

      ./build/examples/emulator/agent/emu_agent_gnb

    • if CU/DU split is used, start the gNB as follows

      ./build/examples/emulator/agent/emu_agent_gnb_cu
./build/examples/emulator/agent/emu_agent_gnb_du

  • Start different xApps

    • start the KPM monitor xApp - measurements stated in 3.1.1 E2SM-KPM for each UE that matches S-NSSAI common criteria

      cd flexric
./build/examples/xApp/c/monitor/xapp_kpm_moni

      Note: we assume that each UE has only 1 DRB; CU-UP does not store the slices, therefore “coarse filtering” is used

    • start the RC monitor xApp - aperiodic subscription for “UE RRC State Change”

      cd flexric
./build/examples/xApp/c/monitor/xapp_rc_moni

    • start the RC control xApp - RAN control function “QoS flow mapping configuration” (e.g. creating a new DRB)

      cd flexric
./build/examples/xApp/c/kpm_rc/xapp_kpm_rc

    • start the (MAC + RLC + PDCP + GTP) monitor xApp

      cd flexric
./build/examples/xApp/c/monitor/xapp_gtp_mac_rlc_pdcp_moni

The latency that you observe in your monitor xApp is the latency from the E2 Agent to the nearRT-RIC and xApp.
This shows that FlexRIC can be used for use cases with ultra low-latency requirements.

4.2 Test with OAI RAN

At this point, we assume the 5G Core Network is already running in the background. Please follow CN tutorial for more information.

In order to configure E2 agent, please, add the following block in OAI’s configuration file:

e2_agent = {
  near_ric_ip_addr = "127.0.0.1";
  sm_dir = "/usr/local/lib/flexric/"
}

  • start E2 Node agents

    • start the gNB-mono

      cd oai/cmake_targets/ran_build/build
sudo ./nr-softmodem -O <path-to/oai-workshops/oam/conf/gnb.sa.band78.fr1.106PRB.usrpb210.conf> --rfsim --sa -E

    • if CU/DU split is used, start the gNB as follows

      sudo ./nr-softmodem -O <path-to/oai-workshops/oam/conf/gnb-du.sa.band78.106prb.rfsim.conf> --rfsim --sa -E
sudo ./nr-softmodem -O <path-to/oai-workshops/oam/conf/gnb-cu.sa.f1.conf> --sa

    • if CU-CP/CU-UP/DU split is used, start the gNB as follows

      sudo ./nr-softmodem -O <path-to/oai-workshops/oam/conf/du_for_cu_cp_up.conf> --rfsim --sa -E
sudo ./nr-softmodem -O <path-to/oai-workshops/oam/conf/cucp.conf> --sa
sudo ./nr-cuup -O <path-to/oai-workshops/oam/conf/cuup.conf> --sa

  • start the nrUE

    cd oai/cmake_targets/ran_build/build
sudo ./nr-uesoftmodem -r 106 --numerology 1 --band 78 -C 3619200000 --rfsim --sa -O <path-to/oai-workshops/oam/conf/ue.conf> -E

Run Wireshark and capture E2AP traffic by selecting any and set the capture filter to sctp.

Per O-RAN.WG3.E2GAP-v02.00 specifications, no SCTP port is specified for E2AP protocol.

In our implementation, we use port number 36421.

Please, add the following configuration in Wireshark:

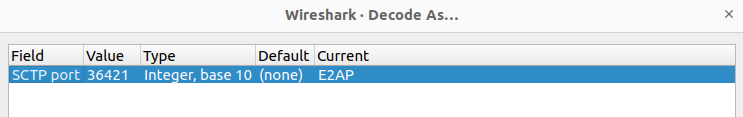

E2AP configuration

  • start the nearRT-RIC
    cd flexric
./build/examples/ric/nearRT-RIC

Check that you see the E2 Setup Request and Response messages in Wireshark. Within E2 Setup Request message, E2 node sends his own capabilities, such are KPM and RC supported RAN Functions:

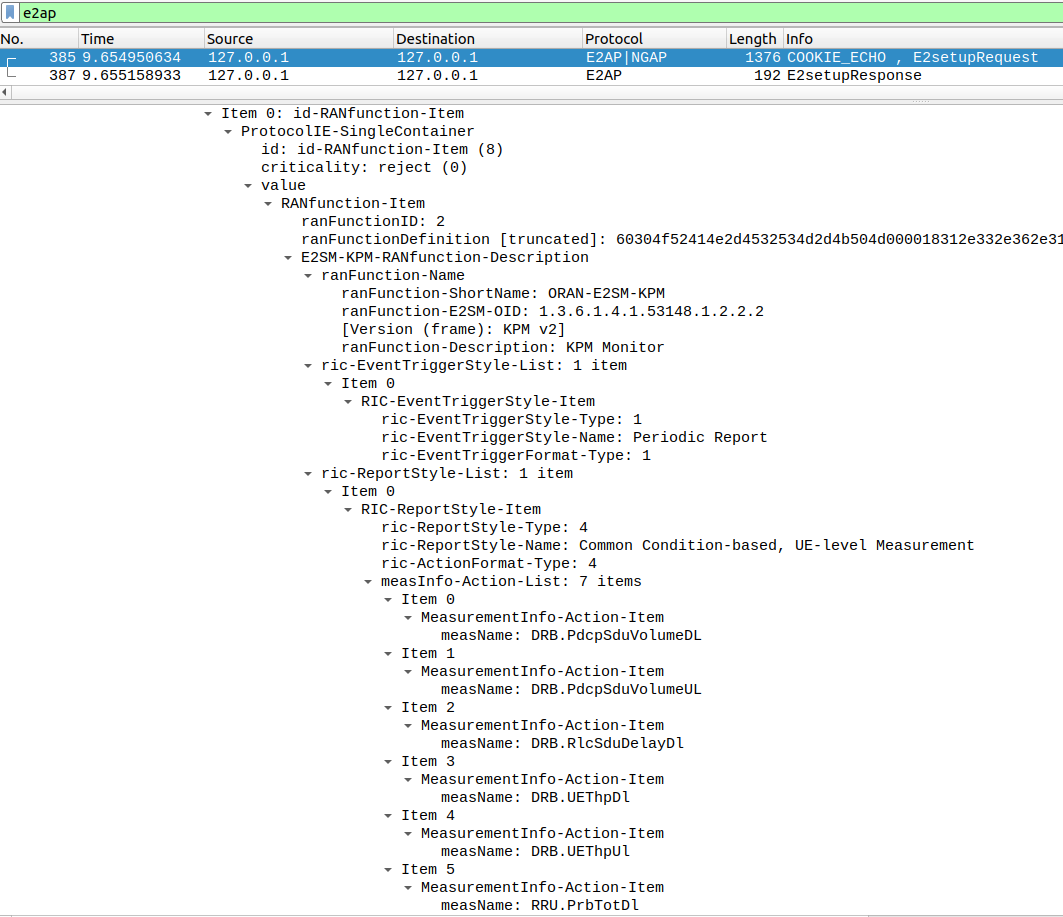

KPM SM capabilities

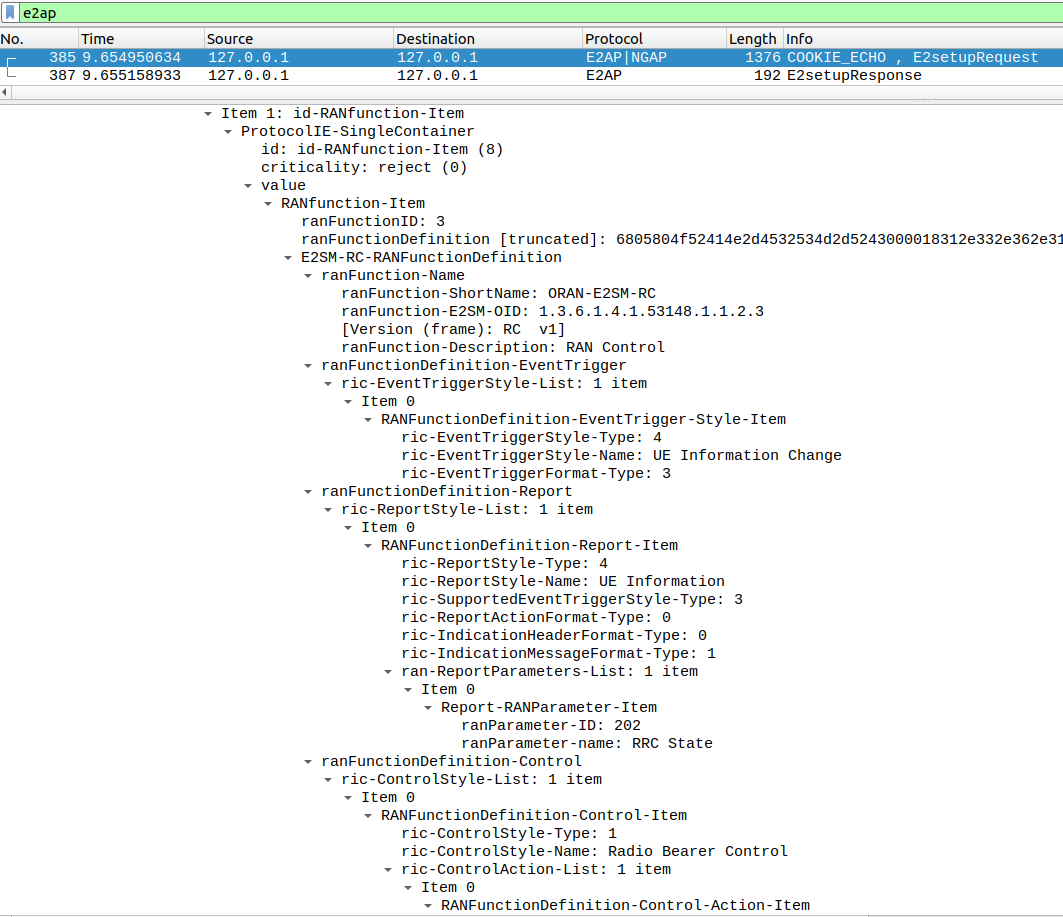

RAN Control SM capabilities

  • Start iperf3 traffic

    • get UE IP address and open server port

      ifconfig  # get UE IP address on interface oaitun_ue1
iperf3 -i1 -s --bind <UE-IP-address>

    • start DL traffic from traffic container oai-ext-dn within CN

      docker exec -t oai-ext-dn iperf3 -c <UE-IP-address> -t60 -B 192.168.70.135 -i1

      Note: for the UL traffic, add option -R

  • Start different xApps

    • start the KPM monitor xApp - measurements stated in 3.1.1 E2SM-KPM for each UE that matches S-NSSAI common criteria

      cd flexric
./build/examples/xApp/c/monitor/xapp_kpm_moni

      Note: we assume that each UE has only 1 DRB; CU-UP does not store the slices, therefore “coarse filtering” is used

    • start the RC monitor xApp - aperiodic subscription for “UE RRC State Change”

      cd flexric
./build/examples/xApp/c/monitor/xapp_rc_moni

    • start the RC control xApp - RAN control function “QoS flow mapping configuration” (e.g. creating a new DRB)

      cd flexric
./build/examples/xApp/c/kpm_rc/xapp_kpm_rc

    • start the (MAC + RLC + PDCP + GTP) monitor xApp

      cd flexric
./build/examples/xApp/c/monitor/xapp_gtp_mac_rlc_pdcp_moni

The latency that you observe in your monitor xApp is the latency from the E2 Agent to the nearRT-RIC and xApp. This shows that FlexRIC can be used for use cases with ultra low-latency requirements.

4.3 Mapping between emulator and RAN E2 agent code

Emulator OAI E2 agent
E2 Setup Request (E2 node Component Configuration) read_setup_ran.c read_setup_ran.c
E2 Setup Request (RAN Functions added) test_agent.c init_ran_func.c
general KPM SM source file sm_kpm.c ran_func_kpm.c
KPM SM REPORT Service ran_func_kpm_subs.c
general RC SM source file sm_rc.c ran_func_rc.c
RC SM REPORT Service ran_func_rc_subs.c

5. Optional - Multiple UEs

Multi-UE operation is also supported through FlexRIC as described in the RAN tutorial.

6. Showcased demos

6.1 QoS demos

6.1.1 Keysight RAN Simulator && OAI FlexRIC

Please, take a look at the FlexRIC README.

6.1.2 OAI RAN, CN and FlexRIC

This description is a step-by-step guide to reproduce the demo

Improving QoE using O-RAN compliant nearRT-RIC, KPM and RC SMs in an online multi-player game

In the O-RAN F2F meeting in Athens in February 2024, the QoE E2 demo was complemented with an O1 use case to “soft-restart” the base station; this is not described in this document. You can see the slides and demo videos here:

For more information on O1, checkout the telnet-o1 branch in OAI, and the “O1 adapter” at Gitlab.

6.1.2.1 Set up a working RAN environment with OAI

We suppose you have a working RAN with a commercial UE (Quectel module, smartphone). The branch used for this demo is qoe-e2. We suggest to check out this branch, and to make sure that you can connect a UE to the RAN (and the core!) WITHOUT E2, before proceeding.

Make sure that you have a stable throughput, and that you can reach maximum throughput using F1 and using 20 and 40 MHz configuration files cu.conf, du_20.conf, and du_40.conf. The original demo uses one host for DU (further called duhost) and another one for RIC, CU, and CN (further called cuhost), so adapt IP addresses accordingly.

You might want to open slither.io on the phone and see that you can play it smoothly (cf. demo videos).

6.1.2.2 Build RIC and OAI with E2 support

Assuming the repository of the above step is in ~/openairinterface5g:

cd ~/openairinterface5g
git checkout qoe-e2 # you should have already done this, here for clarity
cd cmake_targets
./build_oai --ninja --gNB -w USRP -c --build-e2 # build with E2 support

Do the above on both DU and CU host machines. Meanwhile, build flexric in the submodule, from another terminal, on both hosts, to install the service models:

cd ~/openairinterface5g
cd openair2/E2AP/flexric
mkdir build && cd build
cmake .. -DXAPP_MULTILANGUAGE=OFF -GNinja -DCMAKE_BUILD_TYPE=Release
ninja
sudo ninja install     # important, on both machines!
6.1.2.3 Run the system, first without xApp

Start the RIC on cuhost:

cd ~/openairinterface5g/openair2/E2AP/flexric/build/
./examples/ric/nearRT-RIC

Open Wireshark on cuhost, capture on any interface with capture filter sctp.

In another terminal, start the CN (not listed here for brevity) and the CU on cuhost:

sudo ./nr-softmodem --sa -O ~/openairinterface5g/cu.conf

Make sure the CU correctly connected to the CN and FlexRIC with the NG Setup and E2 Setup procedures!

On duhost, start the DU:

sudo ./nr-softmodem --sa -O ~/openairinterface5g/du_20.conf
sudo ./nr-softmodem --sa -E -O ~/openairinterface5g/du_40.conf # alternative

Note that you need 3/4 sampling for 40MHz on B210, which was used in the demo.

Again, make sure that the DU connected properly to CU and FlexRIC with the F1 Setup and E2 Setup procedures. You should see this in the one Wireshark window you opened on cuhost.

Now, connect the phone. Again, slither.io should be playable. You can generate iperf traffic, and slither.io should start to lag. A single TCP stream should be enough. To really provoke buffer bloat, you might use multiple streams. For this, do the following:

iperf3 -sui1 # on the phone, receive traffic
docker exec -it oai-ext-dn iperf3 -c 12.1.1.102 -t3600 -B 192.168.70.135 --cport 10101 -i1 -P8 # on cuhost, generate traffic

Set the IP address of the phone correctly. The --cport 10101 option is important so that the traffic will be segregated into the two bearers correctly later. -P8 creates multiple streams to trigger buffer bloat.

You can also ping the phone, which should show increasing ping times:

docker exec -it oai-ext-dn ping 12.1.1.102
6.1.2.4 Use the xApp to trigger bearer creation on demand automatically

Simply start the xApp on cuhost:

cd ~/openairinterface5g/openair2/E2AP/flexric/build/
./examples/xApp/c/kpm_rc/cu_du_xapp_kpm_rc

The xApp will subscribe at the DU to receive “RLC sojourn times”, i.e., the time packets wait at RLC, and show it. The measurement is in microseconds (us). If the time is > 10000 us, it will trigger a new bearer (visible through “LCID 5” in the DU periodical output, and corresponding message in the CU, or in wireshark); if it is lower, it will release the second bearer, if any.

This should have the effect of maintaining ping at a low level, while still maxing out the throughput.

If you stop the xApp while iperf was running (a second bearer had been created), the second bearer will remain.

If you stop the xApp while no iperf is running/only one bearer is present, no bearer will be created in the future.

6.1.2.5 Reproducing the demo without FlexRIC and xApp using telnet

You can reproduce the demo without using FlexRIC/xApp, and by triggering the bearer addition/release manually. Simply, on the CU, build with telnet server support:

./build_oai --ninja --gNB -w USRP -c --build-lib telnetsrv

You can build with E2 support, but it is not necessary to trigger bearers as shown below.

Then start the DU as normal, and the CU by loading the telnet server including the special bearer module:

sudo ./nr-softmodem --sa -O ~/openairinterface5g/cu.conf --telnetsrv --telnetsrv.shrmod bearer

Now, if the UE is connected, you can trigger the bearer addition and release at will with these two commands, on cuhost, and assuming you have ncat installed:

echo bearer add_bearer | nc 127.0.0.1 9090
echo bearer release_bearer | nc 127.0.0.1 9090

6.2 Slicing demo

This demo is based on branch slicing-spring-of-code. It is experimental work that is subject to changes, but usable as of writing of this training material.

Note that OAI then also uses a specific version of FlexRIC in the submodule, which you need to use if you clone flexric in a separate directory elsewhere!

We will consider two slices as follows.

  • Slice No. 1: SST=1, SD=1
  • Slice No. 2: SST=1, SD=5

Two UEs will connect and request traffic. Their traffic will be prioritised, based on the configuration of the slices.

  • Start the CN as given in the CN tutorial

  • Compile FlexRIC

git clone https://gitlab.eurecom.fr/mosaic5g/flexric
cd flexric
git checkout slicing-spring-of-code
mkdir build && cd build && cmake .. && make -j8 && sudo make install
mkdir build && cd build && cmake -DXAPP_MULTILANGUAGE=OFF .. && make -j8 && sudo make install # if SWIG not installed

  • Compile OAI

    git clone https://gitlab.eurecom.fr/oai/openairinterface5g
cd openairinterface5g
git checkout slicing-spring-of-code
cd cmake_targets
./build_oai -c -C -w SIMU --gNB --nrUE --build-e2 --ninja

  • Start nearRT-RIC

    cd flexric/build/examples/ric
./nearRT-RIC

  • Start gNB-mono

    cd openairinterface5g/cmake_targets/ran_build/build
sudo ./nr-softmodem -O <path-to/oai-workshops/oam/conf/slicing_demo/gnb.conf> --sa --rfsim -E

  • Start UE#1

    cd openairinterface5g/cmake_targets/ran_build/build
sudo <path-to/multi-ue.sh> -c1 -e  # create namespace
sudo LD_LIBRARY_PATH=. ./nr-uesoftmodem --rfsimulator.serveraddr 10.201.1.100 -r 106 --numerology 1 --band 78 -C 3619200000 --rfsim --sa -O <path-to/oai-workshops/oam/conf/slicing_demo/ue_1.conf> -E

  • Start UE#2

    cd openairinterface5g/cmake_targets/ran_build/build
sudo <path-to/multi-ue.sh> -c2 -e  # create namespace
sudo LD_LIBRARY_PATH=. ./nr-uesoftmodem --rfsimulator.serveraddr 10.202.1.100 -r 106 --numerology 1 --band 78 -C 3619200000 --rfsim --sa -O <path-to/oai-workshops/oam/conf/slicing_demo/ue_2.conf> -E

  • Start KPM xApp (optional, to check if the thp is equal to the one in iperf3 logs)

    cd flexric/build/examples/xApp/c/monitor
./xapp_kpm_moni

  • Start iperf for UE#1

    • Terminal #1

      sudo ip netns exec ue1 bash
ifconfig  # get UE IP address on interface oaitun_ue1
iperf3 -i1 -s

    • Terminal #2

      cd <path-to/oai-cn5g-fed/docker-compose>
docker exec -t oai-ext-dn iperf3 -c <UE-IP-address> -t60 -B 192.168.70.145 -i1  # ip address 12.2.1.0/25

  • Start iperf for UE#2

    • Terminal #3

      sudo ip netns exec ue2 bash
ifconfig  # get UE IP address on interface oaitun_ue1
iperf3 -i1 -s

    • Terminal #4

      cd <path-to/oai-cn5g-fed/docker-compose>
docker exec -t oai-ext-dn iperf3 -c <UE-IP-address> -t60 -B 192.168.70.145 -i1  # ip address 12.1.1.128/25

At this point, you should se max thp is at 100 Mbps, split equally 50/50% between UEs.

  • Start RC xApp
    cd flexric/build/examples/xApp/c/ctrl
./xapp_rc_slice_ctrl

RC Control message is sent to gNB-mono, and you should see in its logs:

[NR_MAC]   [E2-Agent]: RC CONTROL rx, RIC Style Type 2, Action ID 6
[NR_MAC]   Add default DL slice id 99, label default, sst 0, sd 0, slice sched algo NVS_CAPACITY, pct_reserved 0.05, ue sched algo nr_proportional_fair_wbcqi_dl
[NR_MAC]   configure slice 0, label SST1SD1, Min_PRB_Policy_Ratio 0
[NR_MAC]   configure slice 0, label SST1SD1, Dedicated_PRB_Policy_Ratio 70
[NR_MAC]   add DL slice id 1, label SST1SD1, slice sched algo NVS_CAPACITY, pct_reserved 0.66, ue sched algo nr_proportional_fair_wbcqi_dl
[NR_MAC]   Matched slice, Add UE rnti 0x1013 to slice idx 0, sst 0, sd 0
[NR_MAC]   Matched slice, Add UE rnti 0x1013 to slice idx 1, sst 1, sd 1
[NR_MAC]   configure slice 1, label SST1SD5, Min_PRB_Policy_Ratio 0
[NR_MAC]   configure slice 1, label SST1SD5, Dedicated_PRB_Policy_Ratio 30
[NR_MAC]   add DL slice id 2, label SST1SD5, slice sched algo NVS_CAPACITY, pct_reserved 0.28, ue sched algo nr_proportional_fair_wbcqi_dl
[NR_MAC]   Matched slice, Add UE rnti 0x9b7f to slice idx 0, sst 0, sd 0
[NR_MAC]   Matched slice, Add UE rnti 0x9b7f to slice idx 2, sst 1, sd 5
[E2-AGENT]: CONTROL ACKNOWLEDGE tx
[NR_MAC]   Frame.Slot 896.0
and the thp of 100 Mbps is split 70/30% between UEs. iperf can be run again, and the thp should remain divided 70/30%.
