OpenAirInterface 5G RAN Workshop 2025

Author: Robert Schmidt, Jaroslava Fiedlerova (November 18, 2025)

Note: this repository is hosted at this Gitlab repository.

What do we cover in the RAN Hands-On?

The aim of this tutorial is to:

  1. Understand the code repository organization
  2. Set up an end-to-end 5G/NR SA setup with RFsimulator from source
  3. Start with the DU-CU/F1 split
  4. Start with the DU-CU/F1+E1 split
  5. Start with the nFAPI+F1+E1 split
  6. Test F1 Handover
  7. Connect multiple UEs
  8. Use the scope(s) + basic channel modeling
  9. NTN

Note: this file can be converted to a presentation using

pandoc -t slidy --template ran.slidy -s README.md -o README.html   --metadata title="OpenAirInterface 5G RAN Workshop 2025" --metadata date="November 18, 2025"

Hardware Requirements

  1. Your laptop/remote server must have at least an 8-core CPU (or equivalent), and a minimum of 16 GB of RAM.
  2. Make sure your laptop/remote server CPU supports avx2.
    • How to check for AVX2 support: Check /proc/cpuinfo for the AVX2 flag (lscpu | grep avx2)
  3. Disk space:
    • If Ubuntu 24.04 is already installed, ensure at least 20 GB of free space.
    • If not, prepare a free partition with at least 100 GB to install Ubuntu 24.04.

Software Prerequisites

  1. Operating system: Linux is required — no Windows or macOS (Intel/M1/M2/M3). We recommend Ubuntu 24.04. While other distributions may work, we cannot guarantee support for them.
  2. Docker: version 25.04 or higher must be pre-installed.

Note: Other necessary software will be installed.

Reading time: ~30mins

Tutorial replication time: ~90mins

Preparation for RAN training session

In this session we will:

  • setup an environment, install dependencies and start compilation
  • have a general overview of the RAN repository

Please don’t hesitate to ask questions!

Installation of dependencies and compilation

Install the RAN dependencies and compile it, as this takes some time.

The repositories should be cloned in your home directory.

In this tutorial, we assume that the main repository is located at ~/openairinterface5g and the workshop repository at ~/oai-workshops.

cd ~
git clone https://gitlab.eurecom.fr/oai/openairinterface5g.git
cd openairinterface5g
git checkout 2025.w46                        # tested tag
cd cmake_targets
./build_oai --ninja -I                       # install dependencies

Compile RAN executables for gNB and nrUE:

./build_oai --ninja --gNB --nrUE -w SIMU -c  # compile gNB and nrUE

Note: For USRP support, you need to use the switch -w USRP.

Alternative:

build_oai is a wrapper on top of cmake. It is therefore possible to run cmake directly:

cd ~/openairinterface5g
mkdir -p cmake_targets/ran_build/build && cd cmake_targets/ran_build/build
cmake ../../.. -GNinja && ninja nr-softmodem nr-uesoftmodem nr-cuup params_libconfig coding rfsimulator ldpc

The RAN repository

  • Repository URL: https://gitlab.eurecom.fr/oai/openairinterface5g
  • Main branch: Work happens in the develop branch
  • Latest release: v2.3.0 (July 2025), check Release Notes
  • Weekly tags: Usually one integration branch per week, tagged in the format YYYY-wWW, e.g., 2025.w43
  • Main README: See README.md in the repository root for general overview
  • Documentation: Comprehensive documentation is available in the doc/ directory:

How to contribute

  • Anyone can contribute! You are here to contribute!
  • You have to sign a Contributor License Agreement
  • Contributions go through
    • Peer review on Gitlab
    • Continuous Integration Build and Testing
  • Useful information on how to contribute to OAI –> Contributing policies

Repository structure

The OpenAirInterface 5G repository is organized into several main directories:

  • openair1/: Layer 1 (3GPP LTE Rel-10/12 PHY, NR Rel-15+ PHY)
  • openair2/: Layer 2 (3GPP LTE Rel-10 MAC/RLC/PDCP/RRC/X2AP, NR Rel-15+ MAC/RLC/PDCP/SDAP/RRC/X2AP/F1AP/E1AP), E2AP!
  • openair3/: Layer 3 (3GPP LTE Rel-10 S1AP/GTP, NR Rel-15+ NGAP)
    • Core network interfaces (NGAP, S1AP) and GTP-U
  • common/: Common code, generic libraries (Tpool, logging, configuration modules, \dots)
  • executables/: LTE and NR executables
    • Main entry points for gNB, eNB, UE applications
  • radio/: Radios and SDRs
    • Support for various SDR platforms (USRP, BladeRF, RFsimulator, FHI72, etc.)
  • nfapi/: (n)FAPI split
  • cmake_targets/: Everything related to compilation
    • Build scripts (build_oai), build artifacts in ran_build/build
  • doc/: Documentation
    • Comprehensive documentation including tutorials, API docs, and design documents
  • ci-scripts/: Everything related to CI testing
    • Test scripts, CI configurations, example config files
  • docker/: Docker build files
    • Dockerfiles for building containerized OAI components
  • charts/: Helm charts for Kubernetes/OpenShift deployment
  • openshift/: OpenShift deployment configurations
  • targets/: Configuration files (PROJECTS)
    • Example configuration files for different deployment scenarios

Deep dive:

  • Where is NR PDSCH modulation? Called in nr_generate_pdsch()
  • Where is the NR PDSCH/DLSCH scheduler? See gNB_dlsch_ulsch_scheduler()
  • Where is the NR RRC Reconfiguration message sent? See rrc_gNB_generate_dedicatedRRCReconfiguration()
  • Where is the PDSCH simulation? See dlschsim.c
  • Where is the E2 agent? See next training session

For more details on the software architecture, see doc/SW_archi.md in the main repository.

Hands-On

  • Set up a working system using simulated SDR
  • Develop basic and advanced understanding of various aspects of OAI to facilitate special trainings later (vrtsim, E2 agent, USRPs, security).

About the RFsimulator

  • Virtual SDR device: replaces physical radio hardware (e.g., USRP boards)
  • Easy setup: test OAI without an RF board by forwarding time-domain I/Q samples
  • Simple: eliminates unpredictable over-the-air perturbations
  • Debugging: perfect for development/testing
  • Non-realtime: ideal for checking signal processing algorithms and protocol implementations
  • Channel modeling support: simulate simple channels such as AWGN and other channel models

Other radios

  • virtual real-time radio: vrtsim, can be used for softwarized performance evaluation/test throughput
  • hardware-based: USRPs, O-RUs/O-RAN 7.2 FHI

Use Cases

  • Development and debugging: Test signal processing and protocol implementations without hardware
  • Workshops and training: Easy setup for multiple participants without interference
  • Channel modeling: Test algorithms under controlled channel conditions
  • Multi-UE testing: Support for connecting multiple UEs to a single gNB
  • NTN simulation: Can simulate satellite propagation delays (e.g., GEO: 238.74 ms one-way)

Limitations

  • Power control: txgain/rxgain settings are not supported
  • CPU-bound: Performance depends on available CPU resources

Documentation

For detailed information about the RFsimulator, see:

How to build

You have 2 options:

Use of the build_oai script

  • “Historical” build tool
  • Is a wrapper for cmake
  • Some useful options: -h, --eNB, --gNB, --UE, --nrUE, -c, --ninja, --sanitize-address, -g, -w, -P/--physical_simulators, …
  • By default, build artifacts are in cmake_targets/ran_build/build (ran_build/ configurable, see -d switch)

Use cmake directly

cd ~/openairinterface5g
mkdir -p cmake_targets/ran_build/build && cd cmake_targets/ran_build/build
cmake ../../.. -GNinja && ninja nr-softmodem nr-uesoftmodem nr-cuup params_libconfig coding rfsimulator ldpc
  • To rebuild more quickly, issue
    ninja nr-softmodem nr-uesoftmodem dfts ldpc params_libconfig coding rfsimulator
  • Also interesting: lte-softmodem, lte-uesoftmodem

How to create a docker image

  • Creating a Docker image is a 3-step process (due to CI specificities):
    • ran-base for dependencies (shared image)
    • ran-build for compiling all targets (shared image)
    • Per-target (eNB, gNB, nrUE, lteUE, \dots) images
  • First, build the shared images:
    docker build --target ran-base --tag ran-base:latest --file docker/Dockerfile.base.ubuntu .
docker build --target ran-build --tag ran-build:latest --file docker/Dockerfile.build.ubuntu .
  • Then, build the target images, e.g., gNB and nrUE (as used in the CN session):
    docker build --target oai-gnb --tag oai-gnb:latest --file docker/Dockerfile.gNB.ubuntu .
  • See also docker/README.md in the main repository for detailed Docker build instructions

Basic end-to-end setup

Startup

Start the core network:

cd ~/oai-workshops/cn/
docker compose -f docker-compose.yml up -d
watch -n 1 docker compose -f docker-compose.yml ps -a

Once all containers are healthy, run Wireshark and capture NGAP traffic:

sudo wireshark -k -i any -Y "ngap"

Then, start the gNB:

cd ~/openairinterface5g/cmake_targets/ran_build/build
./nr-softmodem -O ~/oai-workshops/ran/conf/gnb.sa.band78.106prb.rfsim.conf --rfsim --log_config.global_log_options utc_time

Check that you see the NGAP Setup Request and Response messages in Wireshark.

Run the nrUE from a second terminal:

cd ~/openairinterface5g/cmake_targets/ran_build/build
sudo ./nr-uesoftmodem -C 3619200000 -r 106 --numerology 1 --ssb 516 -O ~/oai-workshops/ran/conf/ue.conf --rfsim --log_config.global_log_options utc_time

Verify that it is connected: you should see the following output at gNB:

[19:23:26.397078] [NR_RRC] [UL] (cellID bc614e, UE ID 1 RNTI c2d2) Received RRCReconfigurationComplete
[19:23:26.397127] [NR_RRC] PDU Session Setup: ID=10, outgoing TEID=0x8bbb99de, Addr=192.168.70.129
[19:23:26.397133] [NR_RRC] NGAP_PDUSESSION_SETUP_RESP: sending the message
[19:23:26.397436] [NR_MAC] DU received confirmation of successful RRC Reconfiguration

and nrUE:

[19:23:26.377172] [NR_RRC] rrcReconfigurationComplete Encoded 10 bits (2 bytes)
[19:23:26.377178] [NR_RRC]  Logical Channel UL-DCCH (SRB1), Generating RRCReconfigurationComplete (bytes 2)
[19:23:26.377185] [NAS]    Received PDU Session Establishment Accept, UE IPv4: 10.0.0.2
Unknown IEI 129
[19:23:26.377806] [OIP]    Interface oaitun_ue1 successfully configured, IPv4 10.0.0.2, IPv6 (null)

Correspondingly, an interface should have been brought up:

24: oaitun_ue1: <POINTOPOINT,NOARP,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UNKNOWN group default qlen 500
    link/none
    inet 10.0.0.3/24 scope global oaitun_ue1
       valid_lft forever preferred_lft forever
    inet6 fe80::d166:f94e:7413:3f79/64 scope link stable-privacy
       valid_lft forever preferred_lft forever

Some other things to check:

  • You see the RA procedure of the UE in the gNB logs

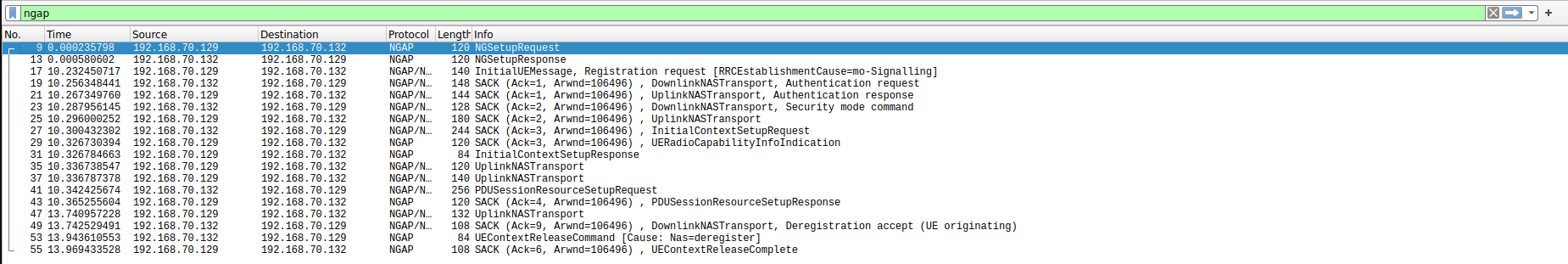

Screenshot of the Wireshark with monolithic gNB

Inject traffic

  • Check the UE’s IP address on interface oaitun_ue1 using:
    ip address show oaitun_ue1
  • The IP address 192.168.70.135 is the address of the oai-ext-dn container.

  • Ping test:

    • From the UE (“UL”) — ping from the UE (host) to the oai-ext-dn container:
      ping -I oaitun_ue1 192.168.70.135
    • From the oai-ext-dn (“DL”) — ping from the oai-ext-dn container to the UE:
      docker exec -it oai-ext-dn ping <UE IP address>  # from container, "DL"

  • Iperf3 test: Iperf3 can be used to test UL and DL throughput between the oai-ext-dn (in Docker) and the UE (running locally):

    • start the iperf3 server inside the container:
      docker exec -it oai-ext-dn bash -c "iperf3 -s"
    • On the host, in a new terminal, run the iperf3 client and bind the UE IP address:
      iperf3 -B <UE IP ADDRESS> -c 192.168.70.135 -u -b 50M -R # DL
iperf3 -B <UE IP ADDRESS> -c 192.168.70.135 -u -b 20M    # UL
    • if your iperf3 version is > 3.10, you can use --bind-dev option instead of -B
      iperf3 --bind-dev oaitun_ue1 -c 192.168.70.135 -u -b 50M -R # DL
iperf3 --bind-dev oaitun_ue1 -c 192.168.70.135 -u -b 20M    # UL

CU-DU F1 split

  • Start Wireshark with capture filter sctp and display filter ngap or f1ap
    sudo wireshark -k -i any -f "sctp" -Y "ngap or f1ap"
  • Start the gNB as follows:
    ./nr-softmodem -O ~/oai-workshops/ran/conf/gnb-cu.sa.f1.conf --log_config.global_log_options utc_time
./nr-softmodem -O ~/oai-workshops/ran/conf/gnb-du.sa.band78.106prb.rfsim.conf --rfsim --log_config.global_log_options utc_time

  • Start the UE as before:

    sudo ./nr-uesoftmodem -C 3319680000 -r 106 --numerology 1 --ssb 516 -O ~/oai-workshops/ran/conf/ue.conf --rfsim --log_config.global_log_options utc_time

  • Compare the IP addresses in the config with what you have below to understand the interfaces

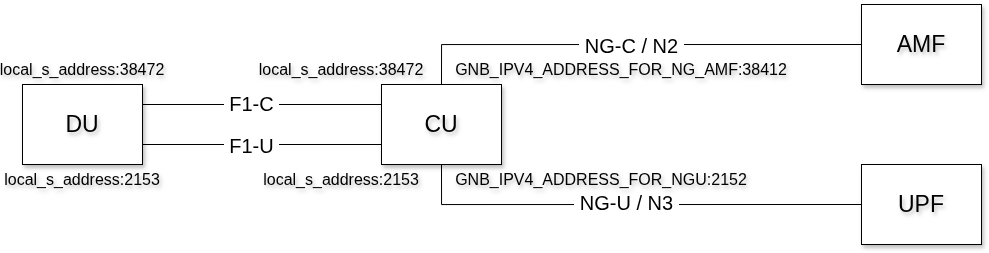

Architecture of F1 and config

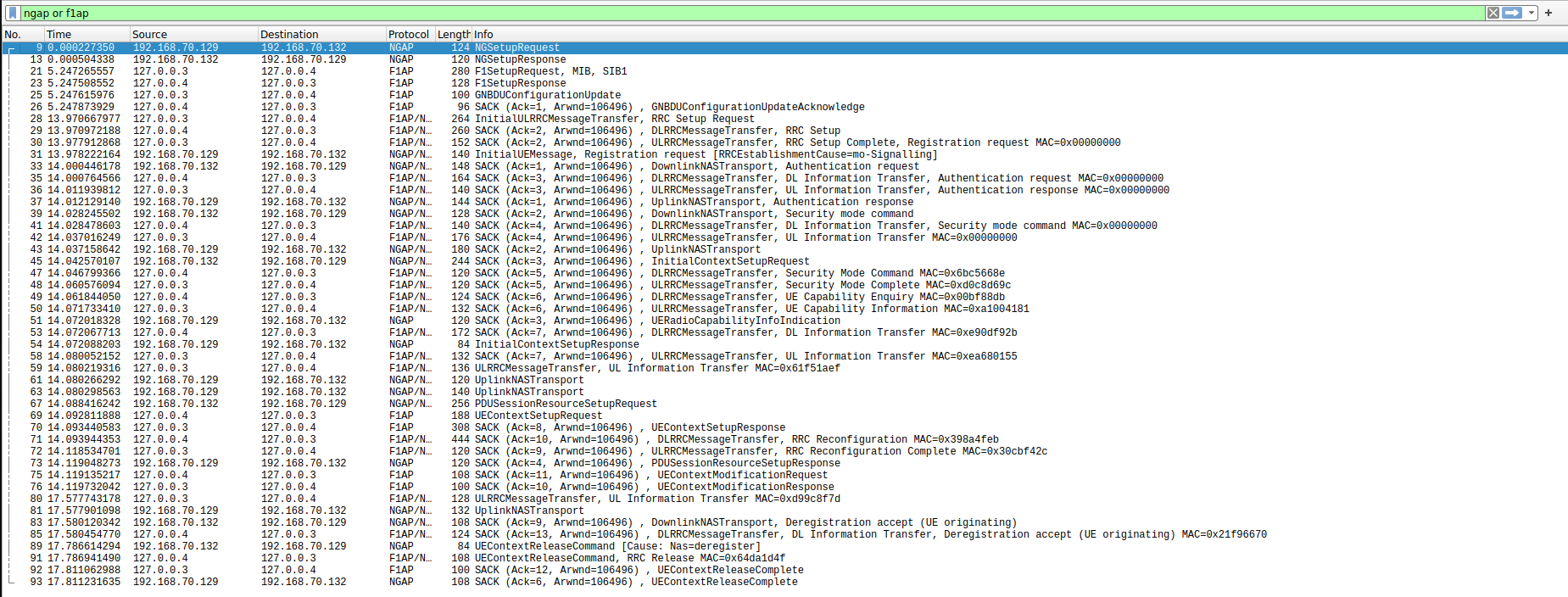

Screenshot of the Wireshark with NG and F1

CU-DU F1 + E1 split

  • Start Wireshark with capture filter sctp and display filter ngap or f1ap or e1ap
    sudo wireshark -k -i any -f "sctp" -Y "ngap or f1ap or e1ap"
  • Start the gNB as follows
    ./nr-softmodem -O ~/oai-workshops/ran/conf/gnb-cucp.sa.f1.rfsim.conf --rfsim --log_config.global_log_options utc_time
./nr-cuup -O ~/oai-workshops/ran/conf/gnb-cuup.sa.f1.rfsim.conf --log_config.global_log_options utc_time
./nr-softmodem -O ~/oai-workshops/ran/conf/gnb-du.sa.band78.106prb.rfsim.conf --log_config.global_log_options utc_time
  • Start the UE as before:
    sudo ./nr-uesoftmodem -C 3319680000 -r 106 --numerology 1 --band 78 --ssb 516 -O ~/oai-workshops/ran/conf/ue.conf --rfsim --log_config.global_log_options utc_time
  • Compare the IP addresses in the config with what you have below to understand the interfaces

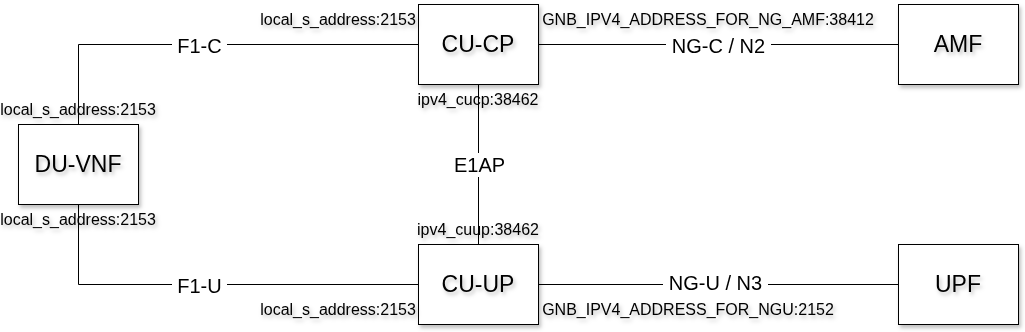

Architecture of F1+E1 and config

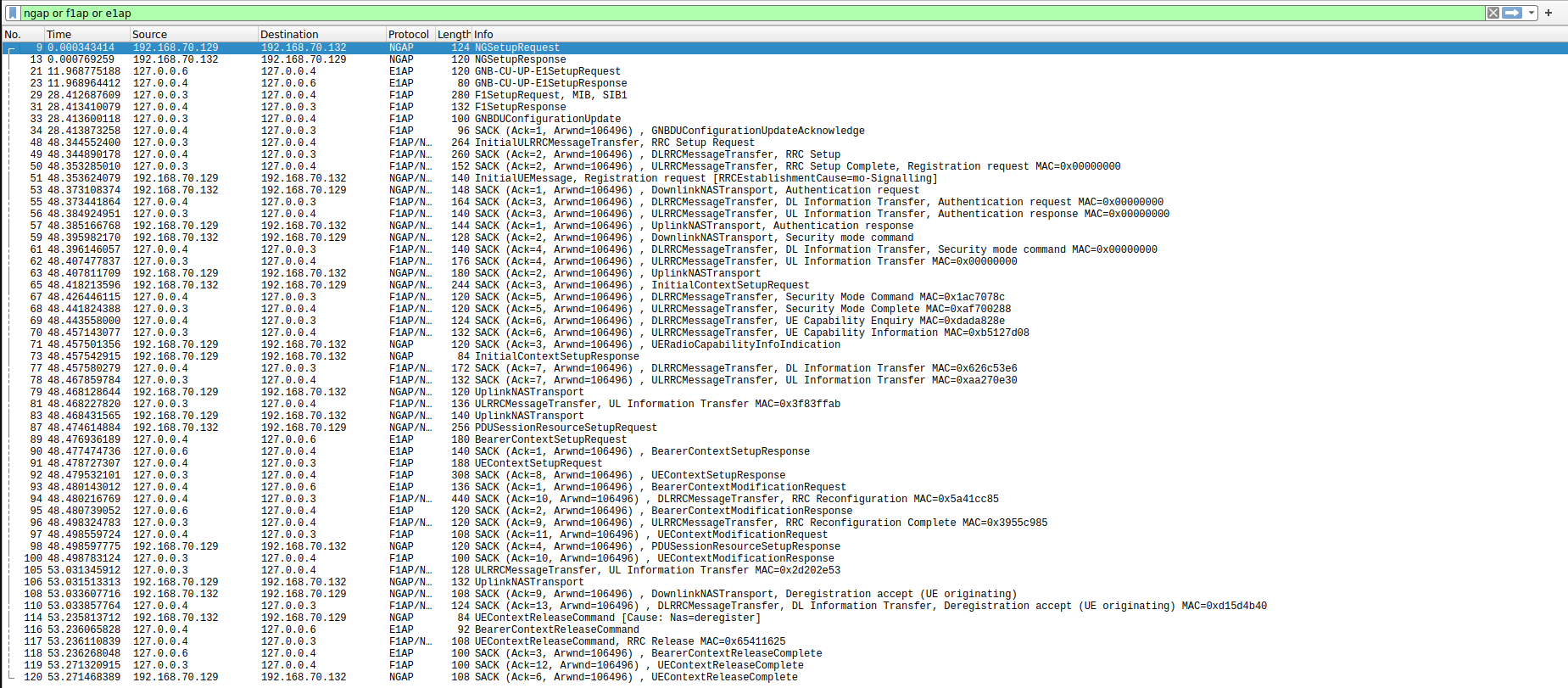

Screenshot of the Wireshark with NG, F1 and E1

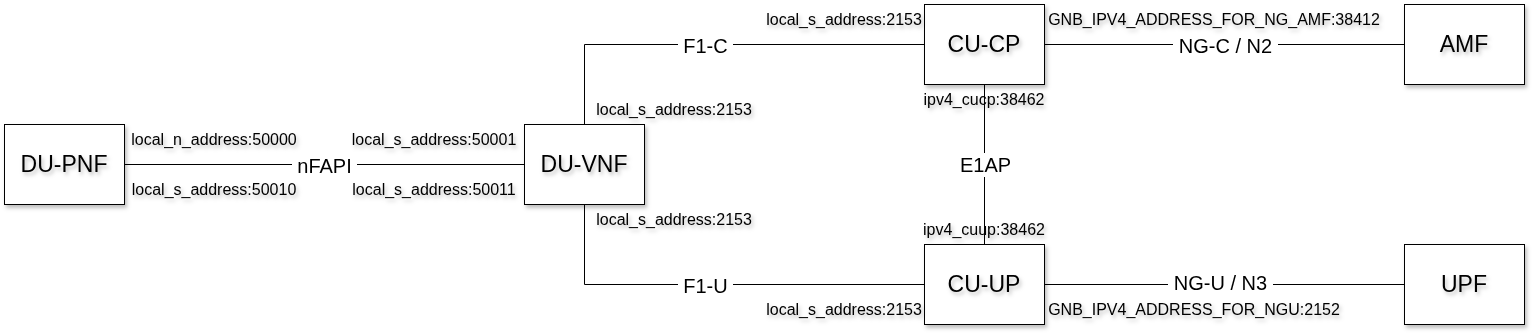

nFAPI + F1 + E1 split

  • Start Wireshark with capture filter sctp and display filter ngap or f1ap or e1ap
  • Start the gNB as follows:
    • Start CU-CP
      ./nr-softmodem -O ~/oai-workshops/ran/conf/gnb-cucp.sa.f1.rfsim.conf --log_config.global_log_options utc_time
    • Start CU-UP
      ./nr-cuup -O ~/oai-workshops/ran/conf/gnb-cuup.sa.f1.rfsim.conf --log_config.global_log_options utc_time
    • Start DU-High
      ./nr-softmodem -O ~/oai-workshops/ran/conf/gnb-vnf.sa.band66.u0.25prb.nfapi.conf --nfapi VNF --log_config.global_log_options utc_time
    • Start DU-Low
      ./nr-softmodem -O ~/oai-workshops/ran/conf/gnb-pnf.band66.rfsim.conf --nfapi PNF --rfsim --log_config.global_log_options utc_time
  • Start UE
    sudo ./nr-uesoftmodem -C 2152680000 --CO -400000000 -r 25 --numerology 0 --band 66 --ssb 48 -O ~/oai-workshops/ran/conf/ue.conf --rfsim --log_config.global_log_options utc_time

Architecture of gNB and config

A closer look at the gNB periodic output

The scheduler periodically outputs statistics that can help assess the radio channel quality and explain why a UE may not perform as expected.

Example:

[NR_MAC]  Frame.Slot 128.0
UE RNTI cb4d CU-UE-ID 1 in-sync PH 48 dB PCMAX 20 dBm, average RSRP -44 (16 meas)
UE cb4d: dlsch_rounds 92/0/0/0, dlsch_errors 0, pucch0_DTX 0, BLER 0.00003 MCS (0) 0 CCE fail 3
UE cb4d: ulsch_rounds 750/0/0/0, ulsch_errors 0, ulsch_DTX 0, BLER 0.00000 MCS (0) 0 (Qm 2 deltaMCS 0 dB) NPRB 5  SNR 51.0 dB CCE fail 0
UE cb4d: MAC:    TX           2308 RX          19918 bytes
UE cb4d: LCID 1: TX            528 RX            281 bytes
UE cb4d: LCID 2: TX              0 RX              0 bytes
UE cb4d: LCID 4: TX             30 RX           1557 bytes

In the first line,

  • UE RNTI: this is also used as the DU UE ID over F1; each line is prepended with the RNTI
  • CU UE ID: separate identifier from the RNTI to handle multiple UEs across DUs (in which case RNTI conflicts are possible)
  • PH: Power Headroom, the amount of power the UE has left. If it is > 40 you can achieve full UL throughput. PCMAX (24 dBm) is what the UE reported as maximum UL transmit power it can output in the channel.
  • RSRP: measured power of the DL reference signals at the UE. >-80dBm you should have full DL throughput. <-95 dBm, you are very limited in terms of connectivity.
  • SINR: measured signal to interference and noise ratio of the SSB received at the UE. Maximum value that can be reported by the UE is 40.0 dB.

The fourth and fifth lines show HARQ-related information.

In the last lines,

  • MAC shows the amount of MAC PDU bytes scheduled in transmit (TX, 1530943191) and receive (RX, 194148) directions
  • LCID X shows the amount of MAC SDU/RLC PDU data for Logical Channel ID with ID X in transmit and receive directions. LCIDs 1 and 2 are mapped to SRBs 1 and 2. LCIDs 4 and onward are mapped to DRBs 1 onward. If you have an LCID 4, it means you have a PDU session.

For other parameters, see doc/MAC/mac-usage.md in the main repository.

A closer look at the config file

gNBs section

  • plmn_list: list of PLMNs, with MCC, MNC, and NSSAIs; needs to match the CN config
  • tracking_area_code: Tracking Area Code; needs to match the CN config
  • amf_ip_address.[0].ipv4: IP address of AMF
  • NETWORK_INTERFACES.GNB_IPV4_ADDRESS_FOR_NG_AMF and NETWORK_INTERFACES.GNB_IPV4_ADDRESS_FOR_NGU: IP address on which the gNB is running
  • min_rxtxtime: minimum feedback time (e.g., PDSCH to PUCCH), is 5 for OAI UE and 2 for commercial UE
  • absoluteFrequencySSB and dl_absoluteFrequencyPointA: frequencies for synchronization signal block and “PointA”, in ARFCN; use a calculator instead of getting mad
  • TDD configuration is in nrofDownlinkSlots, nrofUplinkSlots, nrofDownlinkSymbols and nrofUplinkSymbols

MACRLCs section

  • ulsch_max_frame_inactivity: maximum number of frames until UE is scheduled automatically even without requesting it. Often set to 0 or 1 for lower latency, but this is “artificial”
  • pusch_TargetSNRx10, pucch_TargetSNRx10: target SNRs multiplied by ten for these channels; increasing can sometimes stabilize a system
  • dl_harq_round_max, ul_harq_round_max: maximum number of MAC HARQ rounds
  • dl_max_mcs, ul_max_mcs: maximum MCS to be scheduled

Other parameters: see openair2/GNB_APP/MACRLC_nr_paramdef.h in the main repository

RUs section

  • nb_tx, nb_rx: number of transmit/receive antennas to use
  • max_rxgain: maximum receive gain to be used (IIRC only used for USRP)
  • att_tx, att_rx: attenuation for transmit/receive signals to be applied at the gNB. In many lab scenarios, the receiver of a UE is saturated if the gNB sends with full power; hence you need a value greater than 0 (try, in order: 6, 12, 18)
  • sdr_addrs: arguments to be passed to search for SDR, e.g., IP address for N310

Notes:

  • If an option is not given, a default is used (which might or might not prevent the gNB from starting)
  • You can override many options on the command line. Example: ./nr-softmodem -O gnb.conf --MACRLCs.[0].dl_max_mcs 20

F1 Handover (intra-gNB)

  • Start Wireshark with capture filter sctp and display filter ngap or f1ap

    sudo wireshark -k -i any -Y "ngap or f1ap"
    Exercise: Compare configuration files for DUs: gnb-du.sa.band78.106prb.rfsim.pci0.conf and gnb-du.sa.band78.106prb.rfsim.pci1.conf? Check DU ID, Cell ID, Physical Cell ID

  • Start CU:

    ./nr-softmodem -O ~/oai-workshops/ran/conf/gnb-cu.sa.f1.conf --telnetsrv --telnetsrv.shrmod ci

  • Start DU0:

    sudo ./nr-softmodem --rfsim -O ~/oai-workshops/ran/conf/gnb-du.sa.band78.106prb.rfsim.pci0.conf --rfsimulator.serveraddr ::1

    Note: You might see following error after the DU1 start,

    [HW    ]  Trying to connect to ::1:4043
[HW    ]  connect() to ::1:4043 failed, errno(111)
    This message will disappear once connected to RF simulator server - see next step.

  • Start the UE (acts as a server)

    sudo ./nr-uesoftmodem -C 3619200000 -r 106 --numerology 1 --ssb 516 --rfsim -O ~/oai-workshops/ran/conf/ue.conf --log_config.global_log_options function --rfsimulator.serveraddr server

  • Start DU1:
    sudo ./nr-softmodem --rfsim -O ~/oai-workshops/ran/conf/gnb-du.sa.band78.106prb.rfsim.pci1.conf --rfsimulator.serveraddr ::1
  • Trigger F1 handover
    echo ci trigger_f1_ho | nc 127.0.0.1 9090 && echo

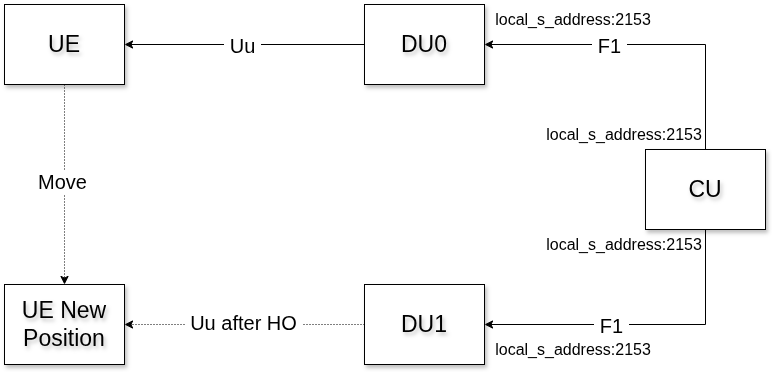

F1 handover setup architecture and config

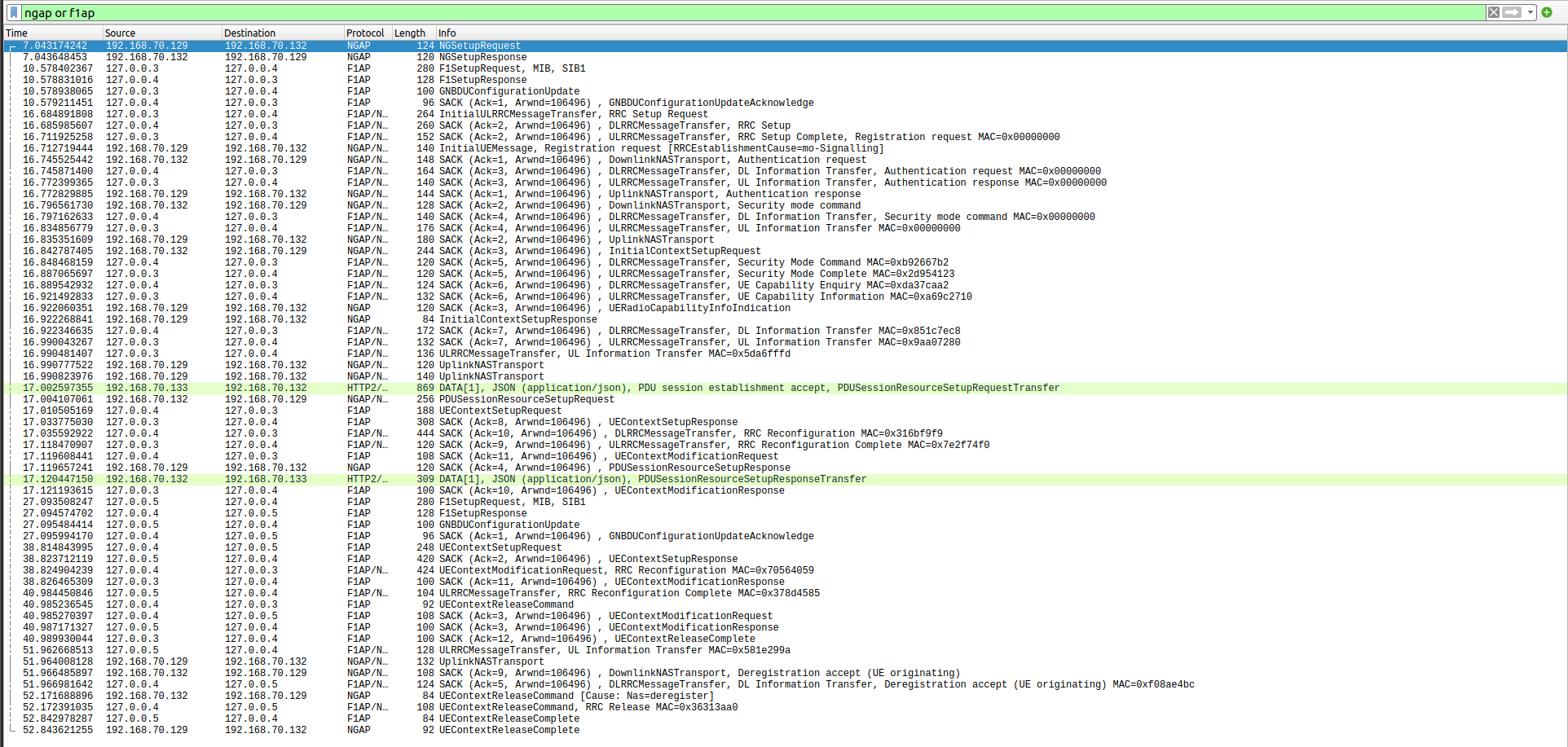

Screenshot of the Wireshark capture of HO deployment

Multiple UEs

  • All UEs try to open the same interface, which does not work
  • Create network namespace for each UE to prevent interface name clash
  • Follow instructions from this link or use the script multi-ue.sh
  • Start first UE as
    sudo ~/oai-workshops/ran/multi-ue.sh -c1 -e
./nr-uesoftmodem -r 106 --numerology 1 --band 78 -C 3619200000 -O /home/oai/oai-workshops/ran/conf/ue.conf --rfsim --rfsimulator.serveraddr 10.201.1.100 --log_config.global_log_options utc_time
  • Check in Wireshark/UE output that everything is ok
  • Second UE with a different IMSI:
    sudo ~/oai-workshops/ran/multi-ue.sh -c2 -e
./nr-uesoftmodem -r 106 --numerology 1 --band 78 -C 3619200000 -O /home/oai/oai-workshops/ran/conf/ue.conf --rfsim --uicc0.imsi 001010000000102 --rfsimulator.serveraddr 10.202.1.100 --log_config.global_log_options utc_time

Exercise

  • Check in Wireshark that both are set up
  • Create traffic from/to both UEs
  • Hints:
    sudo ip netns exec ue1 bash
sudo ip netns exec ue2 bash

Cleanup

  • At the end, remove network namespaces:
    sudo ~/oai-workshops/ran/multi-ue.sh -d1 -d2

Scopes

The scopes allow you to see various channels.

ImScope

  • Install dependencies:
    sudo apt-get install libglfw3-dev libopengl-dev
  • Build scope
    cd ~/openairinterface5g/cmake_targets/
./build_oai --build-lib imscope --ninja
cd ran_build/build/
cmake -DENABLE_IMSCOPE=ON ../../.. && ninja imscope # alternative
  • Run the nr-softmodem and nr-uesoftmodem with --imscope switch

Example commands:

  • Run gNB:

    ./nr-softmodem -O ~/oai-workshops/ran/conf/gnb.sa.band78.106prb.rfsim.conf --rfsim --imscope --log_config.global_log_options utc_time

  • Run UE:

    sudo ./nr-uesoftmodem -C 3619200000 -r 106 --numerology 1 --ssb 516 -O ~/oai-workshops/ran/conf/ue.conf --rfsim --imscope --log_config.global_log_options utc_time

  • For more information about scopes and troubleshooting, refer to: ImScope documentation

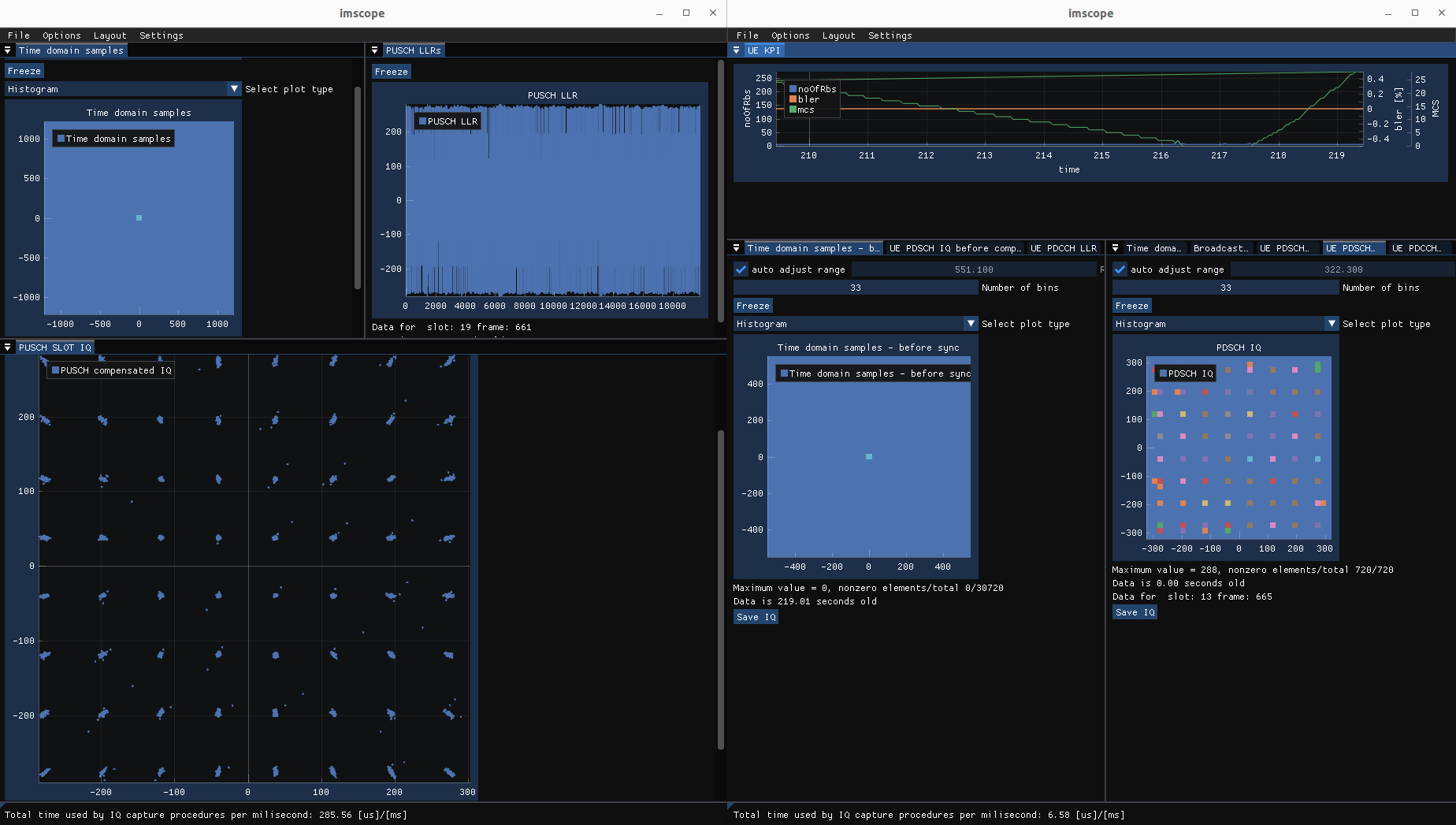

Screenshot of the imscope

Xforms

  • Install dependencies:
    sudo apt-get install libforms-bin libforms-dev
  • Build scope:
    cd ~/openairinterface5g/cmake_targets/
./build_oai --build-lib nrscope --ninja
cd ran_build/build/
cmake -DENABLE_NRSCOPE=ON ../../.. && ninja nrscope # alternative
  • Run nr-softmodem and nr-uesoftmodem with -d switch

  • The error:

    In fl_initialize() [flresource.c:995]: 5G-gNB-scope: Cant open display :0
In fl_bgn_form() [forms.c:347]: Missing or failed call of fl_initialize()
    can be solved by granting root the right to open the X display:
    xhost +si:localuser:root
    Example commands:

  • Run gNB:

    ./nr-softmodem -O ~/oai-workshops/ran/conf/gnb.sa.band78.106prb.rfsim.conf --rfsim -d --log_config.global_log_options utc_time

  • Run UE:

    sudo ./nr-uesoftmodem -C 3619200000 -r 106 --numerology 1 --ssb 516 -O ~/oai-workshops/ran/conf/ue.conf --rfsim -d --log_config.global_log_options utc_time

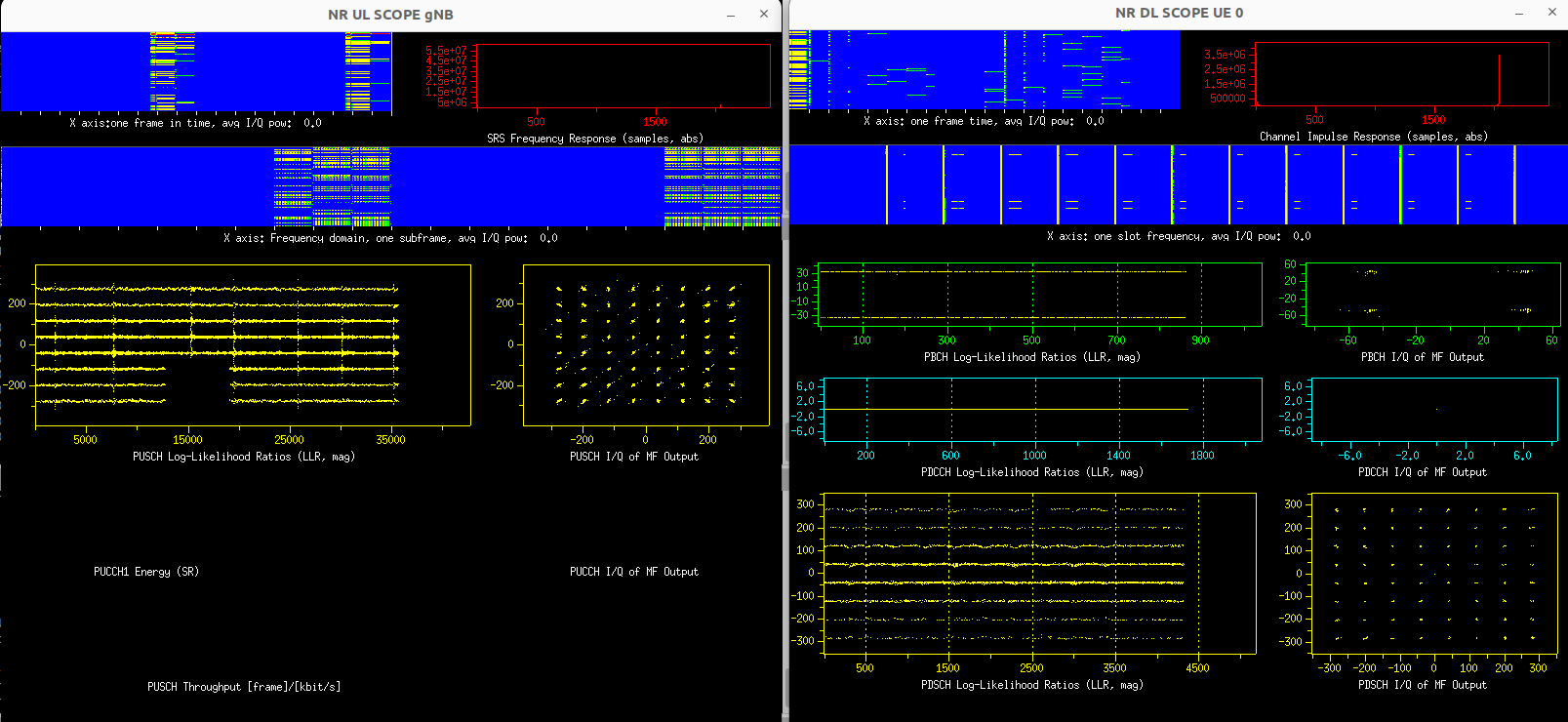

Screenshot of the nrscope

Channel Models

Enabling channels

  • We will simply add Gaussian noise
  • Uncomment the last line in both the gNB and UE config files:
    @include "channelmod_rfsimu.conf"
  • Add the options --rfsimulator.options chanmod --rfsimulator.modelname AWGN to the gNB and UE command lines and start them

  • More info: See openair1/SIMULATION/TOOLS/DOC/channel_simulation.md in the main repository, channel models defined in openair1/SIMULATION/TOOLS/random_channel.c

  • Run gNB:

    ./nr-softmodem -O ~/oai-workshops/ran/conf/gnb.sa.band78.106prb.rfsim.conf --rfsim --imscope --rfsimulator.options chanmod --rfsimulator.modelname AWGN --log_config.global_log_options utc_time

  • Run UE:
    sudo ./nr-uesoftmodem -C 3619200000 -r 106 --numerology 1 --ssb 516 -O ~/oai-workshops/ran/conf/ue.conf --rfsim --rfsimulator.options chanmod --rfsimulator.modelname AWGN --log_config.global_log_options utc_time

Dynamically modifying Channel Model Parameters using Telnet

  • Make sure the telnet shared library is compiled:
    cd ~/openairinterface5g/cmake_targets/
./build_oai --build-lib telnetsrv --ninja
cd ran_build/build/
cmake ../../.. -DENABLE_TELNETSRV=ON && ninja telnetsrv
  • Start the nr-softmodem/nr-uesoftmodem with parameter --telnetsrv

Note: Configure the UE telnet port to be different from the gNB: --telnetsrv.listenport 9091

  • In a new terminal: connect to gNB/UE: telnet 127.0.0.1 9090
    • Use help to show available commands
    • Use channelmod show current to show current channel model configuration
    • Use channelmod help to show available parameters to change
    • Example: change noise using channelmod modify 1 noise_power_dB -5
  • More information: See openair1/SIMULATION/TOOLS/DOC/channel_simulation.md in the main repository

Example commands:

  • gNB
    ./nr-softmodem -O ~/oai-workshops/ran/conf/gnb.sa.band78.106prb.rfsim.conf --rfsim --imscope --rfsimulator.options chanmod --rfsimulator.modelname AWGN --telnetsrv --log_config.global_log_options utc_time
  • UE
    sudo ./nr-uesoftmodem -C 3619200000 -r 106 --numerology 1 --ssb 516 -O ~/oai-workshops/ran/conf/ue.conf --rfsim --imscope --rfsimulator.options chanmod --rfsimulator.modelname AWGN --telnetsrv --telnetsrv.listenport 9091 --log_config.global_log_options utc_time
  • Connect to the local telnet interface to view or modify channel parameters:
    telnet 127.0.0.1 9090
    Once connected, you can display the current channel configuration and adjust parameters as needed:
    channelmod show current
channelmod modify 1 noise_power_dB -5
    Observe the change of noise_power_dB in the scope to verify the effect of the modification.

NTN setup (Exercise)

Exercise: simulate non-terrestrial communication for a geostationary satellite (only signal delay, no other impairments) using the knowledge you acquired in this workshop.

  • Run the gNB:
    ./nr-softmodem --rfsim -O ../../../ci-scripts/conf_files/gnb.sa.band254.u0.25prb.rfsim.ntn.conf
    Note: you have to potentially adapt PLMN, and AMF and gNB IP addresses, to make this connect reliably. The rest is set in the config (no additional command line parameters required.
  • Run the UE:
    sudo ./nr-uesoftmodem --rfsim --band 254 -C 2488400000 --CO -873500000 -r 25 --numerology 0 --ssb 60 --rfsimulator.prop_delay 238.74 --num-ul-actors 1 --num-dl-actors 1 -O ../../../ci-scripts/conf_files/nrue.uicc.conf
    Also here, you might need to change the IMSI and other authentication-related parameters.
  • If you run this, notice that it runs much faster than what you would expect. Explain this.
  • You might be interested to run this with normal (real-time) speed. Apply and compile the below patch, which will slow down RFsim. What do you observe now?
  diff --git a/radio/rfsimulator/simulator.c b/radio/rfsimulator/simulator.c
index 94234a755f..6cd7a69c93 100644
--- a/radio/rfsimulator/simulator.c
+++ b/radio/rfsimulator/simulator.c
@@ -1067,6 +1067,22 @@ static int rfsimulator_read(openair0_device *device, openair0_timestamp *ptimest
     LOG_D(HW, "Rfsimulator: velocity %.2f Msps, realtime requirements %.2f Msps\n", average / 1e6, t->sample_rate / 1e6);
   }

+  static struct timespec now;
+  if (now.tv_nsec == 0) {
+    // first time here: initialize to current time
+    int r = clock_gettime(CLOCK_MONOTONIC, &now);
+    DevAssert(r == 0);
+  } else {
+    // advance by half a millisecond
+    now.tv_nsec += 1000000;
+    if (now.tv_nsec > 999999999) {
+      now.tv_nsec -= 1000000000;
+      now.tv_sec++;
+    }
+  }
+  int r = clock_nanosleep(CLOCK_MONOTONIC, TIMER_ABSTIME, &now, NULL);
+  DevAssert(r == 0);
+
   *ptimestamp = t->nextRxTstamp; // return the time of the first sample
   t->nextRxTstamp += nsamps;
   LOG_D(HW,
